VISION SYSTEM FIXTURE KITS
PRECISION inspection

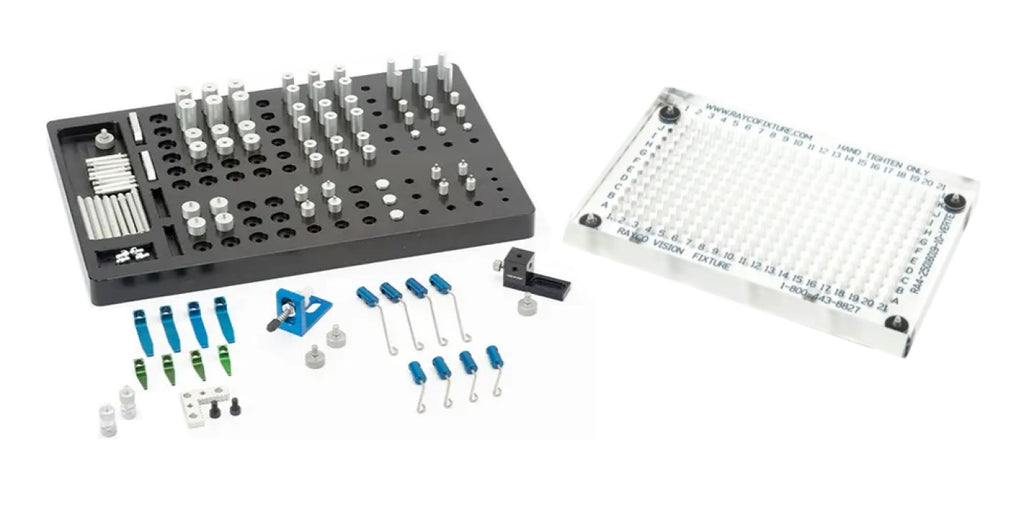

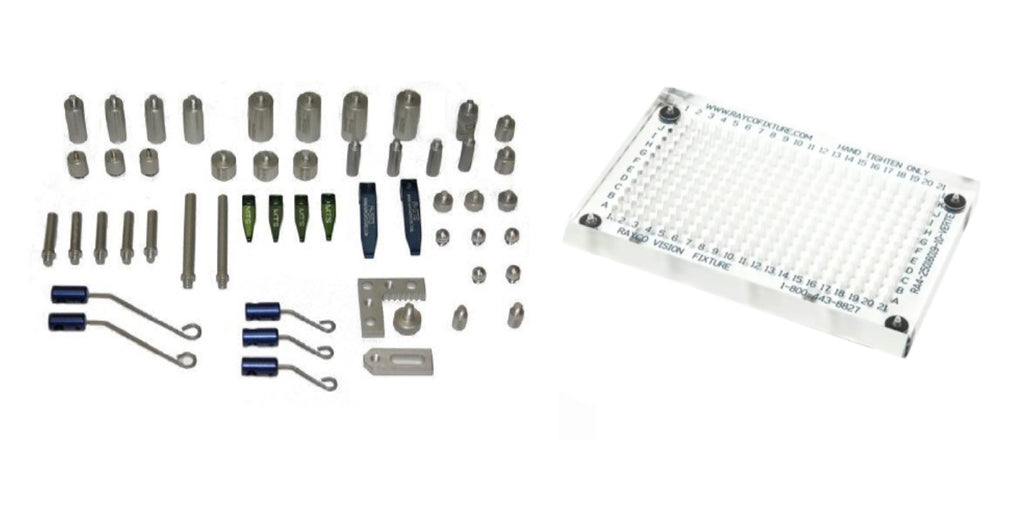

Rayco's Vision System Fixture Kits are sets of high-quality components designed to be used together to create custom fixture solutions for vision system applications. These kits provide everything needed to create a fixture, including base plates, risers, clamps, and other accessories.
The components in these kits are made from high-quality materials, such as aluminum and steel, and are precision-machined to ensure accuracy and repeatability. They are also designed to be modular and interchangeable, allowing users to quickly and easily assemble custom fixtures for their specific measurement needs.
Some of the components that are included in Rayco's Vision System Fixture Kits are as follows...
- Base Plates: These provide a stable platform for the vision system and the parts being measured. They are available in various sizes and shapes to fit different parts and machine types.
- Riser Blocks: These are used to elevate parts to the desired height for measurement. They come in different heights and can be stacked together to achieve the desired height.
- Clamps: These are used to hold parts securely in place during measurement. They are available in various styles, including vacuum cups, magnetic clamps, and spring-loaded clamps.
- Locating Pins: These are used to ensure accurate part placement and alignment. They are available in different sizes and styles to fit different parts and fixtures.

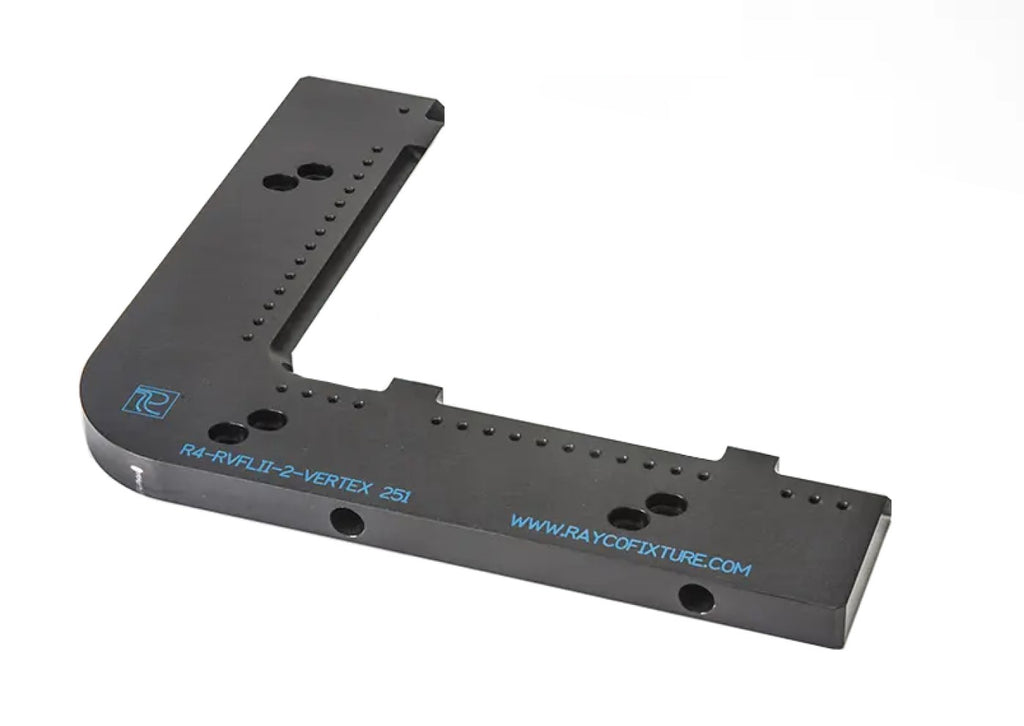

- Angle Plates: These are used to hold parts at specific angles for measurement. They are available in different sizes and angles to fit different parts and applications.
Rayco's Vision System Fixture Kits are designed to be versatile and easy to use, allowing users to quickly and easily assemble custom fixtures for their specific measurement needs. With these kits, users can improve the accuracy and efficiency of their measurement processes, leading to better quality parts and increased productivity.
Overall, Rayco's Vision System Fixture Kits are an excellent choice for vision system applications, providing high-quality components and flexibility to customize fixtures to meet specific measurement requirements.
