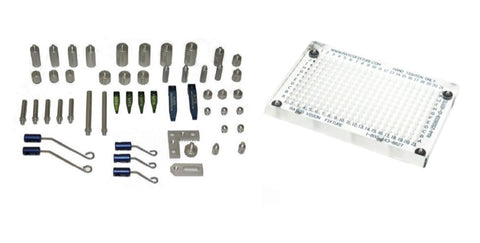

Rayco Basic Vision Fixture Kit with Components and 8" x 8" Plate This vision system fixturing kit includes a 200mm x 200mm x 19mm Rayco Acrylic Vision Plate that has M4 threaded holes 10mm on center. This plate is numbered and lettered to help document setups for repeatability and reproducibility. Includes the following... Clear Acrylic Vision Plate Vision Kit A with 1/4-20 thread. Total Component Count: 39 (3) R20-2550-SO: .25” Dia. x .50” Standoff (3) R20-251-SO: .25” Dia. x 1.0” Standoff (3) R20-37525-SO: .375” Dia. x .25” Standoff (3) R20-37550-SO: .375” Dia. x .50” Standoff (3) R20-3751-SO: .375” Dia. x 1.0” Standoff (3) R20-5050-SO: .50” Dia. x .50” Standoff (2) R20-2550-PSO: .25” Dia. x .50” Pin Standoff (2) R20-37550-PSO: .375” Dia. x .50” Pin Standoff (2) R20-MTS-1: Mini Tension Spring – 1” Post (3) R20-WTS-125-1: Wire Tension Spring Clamp – 1” Post (3) R20-WTS-2-2: Wire Tension Spring Clamp – 2” Post (4) R20-SRP: Steel Resting Pin (1) R20-MCV: MINI Corner Viewer (1) R20-50-JS: .50” Dia. Small Jackstand (1) R20-MSLD: Mini Slide Base (1) R20-LB: Locating Block with Base (1) XT-BOX: Organizer Box
