MITUTOYO SPC CABLES
STREAMLINED DATA AQUISITION
Mitutoyo SPC cables are used to output measurement data from the Digimatic gage with the output feature to the Digimatic mini processor, Digimatic display unit, multiplexer or other device.
Mitutoyo SPC Cables all have a common 10-pin connector on one end, allowing you to connect this end to a gage interface device. The other end connects to the desired gage. Be sure to choose the connector that matches the Digimatic SPC Port on your tool. Some SPC cables have an integrated Data Send Button that can be used if the tool is not equipped. SPC cables come in 1m and 2m lengths.

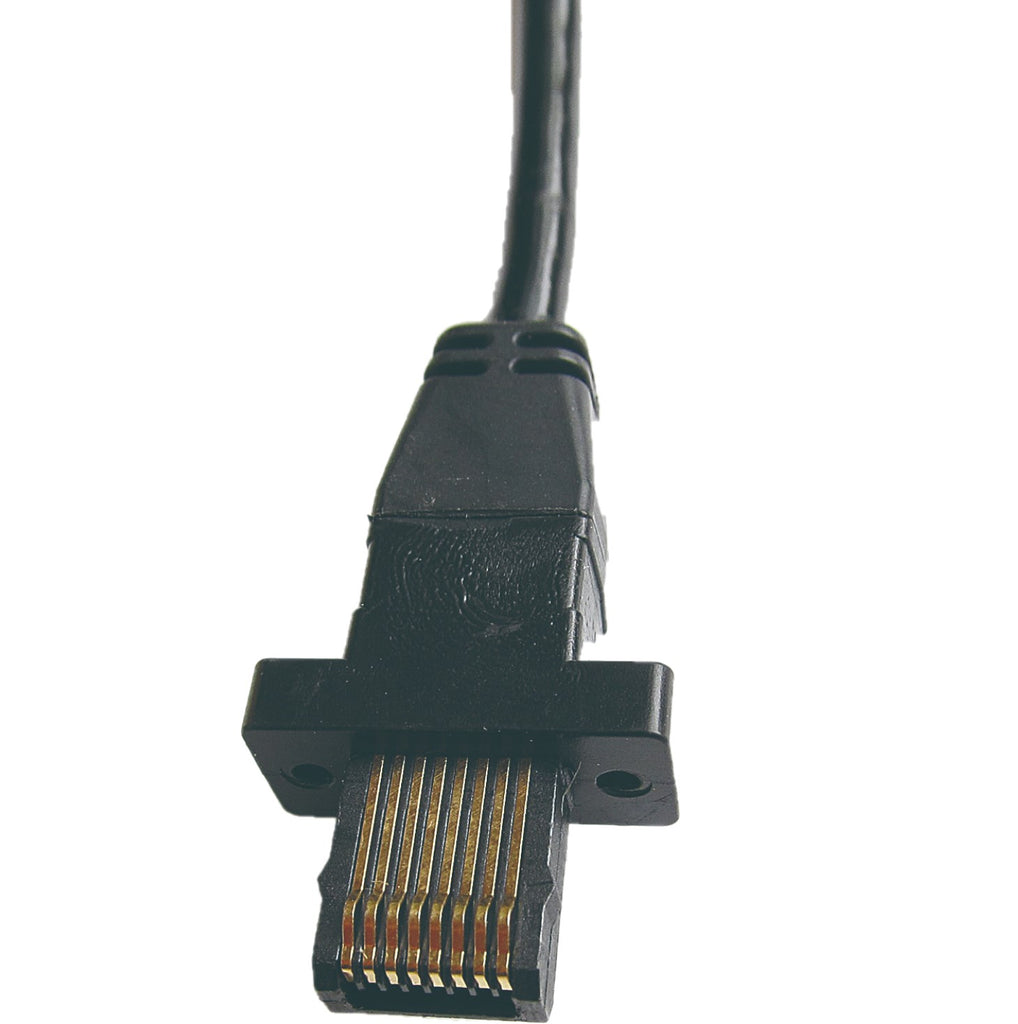

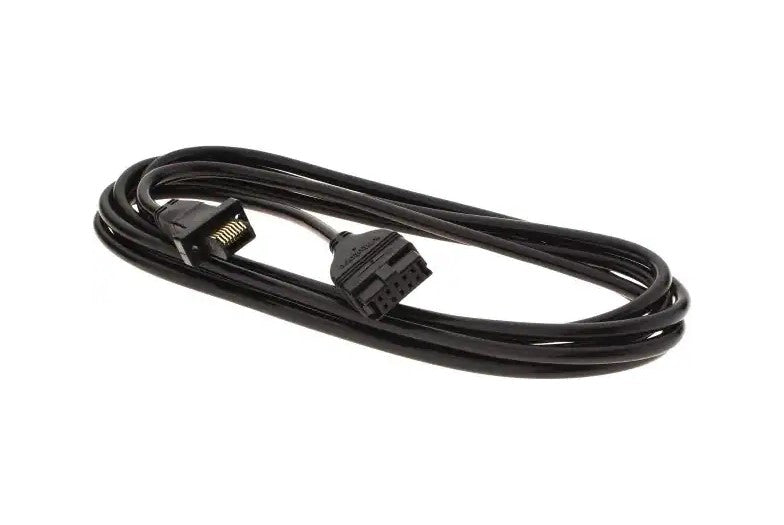

1m Cables | 21EAA194 | ||||||
2m Cables | |||||||
| Cable Type | Water-proof with switch | Water-proof with switch | With Switch | 10-pin plain | 6-pin round | Straight Type | Water-proof Straight Type |
| Connector Illustration |  |  |  |  |  |  |  |
| Gage Connector |  |  |  |  |  |  |  |
| Compatible Gage | 550 / 551 series Caliper 552 series Carbon Fiber Caliper 571 series Depth Gage 572 series Scale Unit 573 series Caliper | 293 / 337 / 339 / series Micrometers 350 series Micrometer Heads 468 series Holtest | 164 series Micrometer Head 500 series Caliper 550 / 551 series Depth Gage 572 series Scale Unit 573 series Caliper | 178 series Surftest 179 series Thickness Gage 518 series Linear Height 543 series IDH Indicators 544 series Laser Scan Micrometers | 121 / 164 / 227 / 293 / 337 / 339 / series Micrometers 468 series Holtest 568 series Borematic 810 series Hardness Testers | 192 / 570 / 574 series Height Gages 500 / 550 / 551 series Calipers 511 series Bore Gage 543 series IDC Indicators 547 series Depth Gages 552 series Carbon Fiber Caliper | 543 series IDN, IDB Indicator |

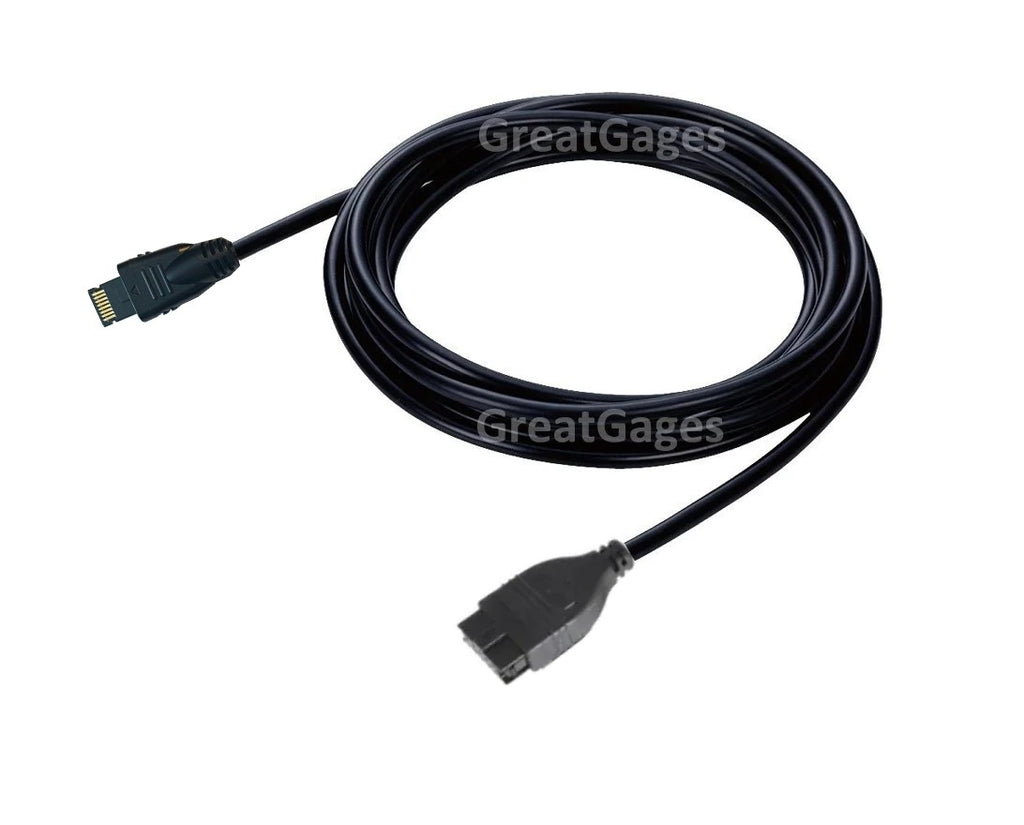

Attention: In 2023 Mitutoyo updated their ID-C line of Digital Indicators.
These new Indicators have a new SPC Cable connector type, so Mitutoyo has also released new SPC Cables.
The cable length is available in 1 meter or 2 meters below:
