MITUTOYO USB DIRECT CABLES
STREAMLINED DATA AQUISITION
Mitutoyo's USB Direct Cables are absolutely the easiest way to get data from a Mitutoyo Digital Gage into a Windows based software program like Microsoft Excel, or even a Windows-based SPC Software like MeasurLink or QC-CALC.
No extra software is required! Just connect the cable to a USB port on your computer, and Windows will recognize the cable as a keyboard, or Human Interface Device (HID).

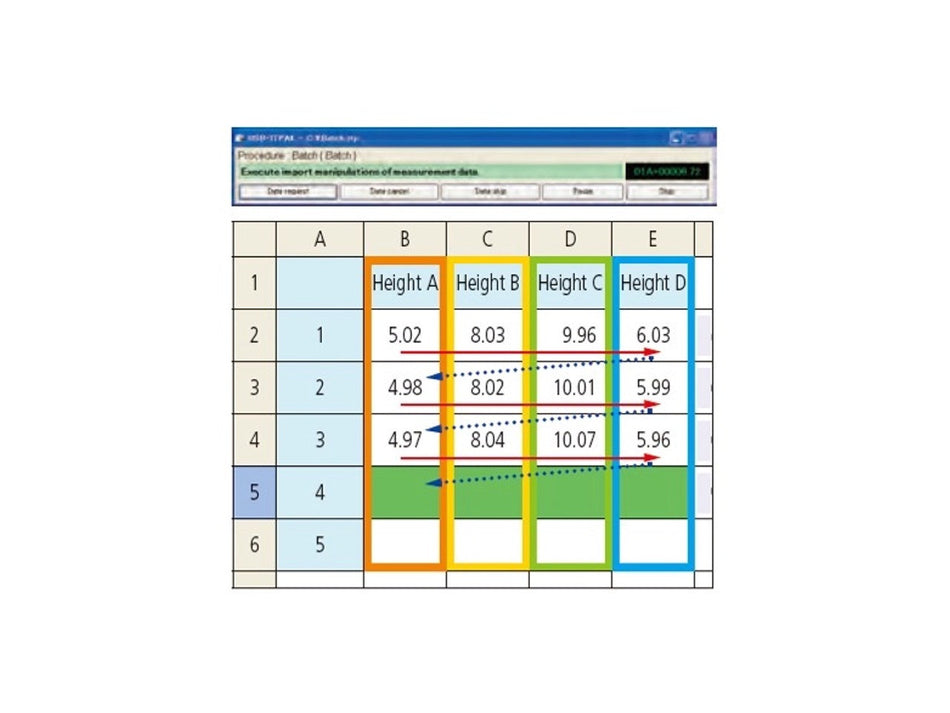

To send data to your PC, just put your Windows mouse cursor in any software, wherever you want the data to be placed just like you would if you were going to type in the data. You now can send data from your gage to ANY Windows-based software that allows you to type in data just by pressing the data send button on the gage or on the cable connector that is plugged into the gage.
Data sending can start immediately after connecting the measuring instrument to a computer!
| Model # | USB-ITN-A | USB-ITN-B | USB-ITN-C | USB-ITN-D | USB-ITN-E | USB-ITN-F | USB-ITN-G |
| Order # | 06AFM380A | 06AFM380B | 06AFM380C | 06AFM380D | 06AFM380E | 06AFM380F | 06AFM380G |

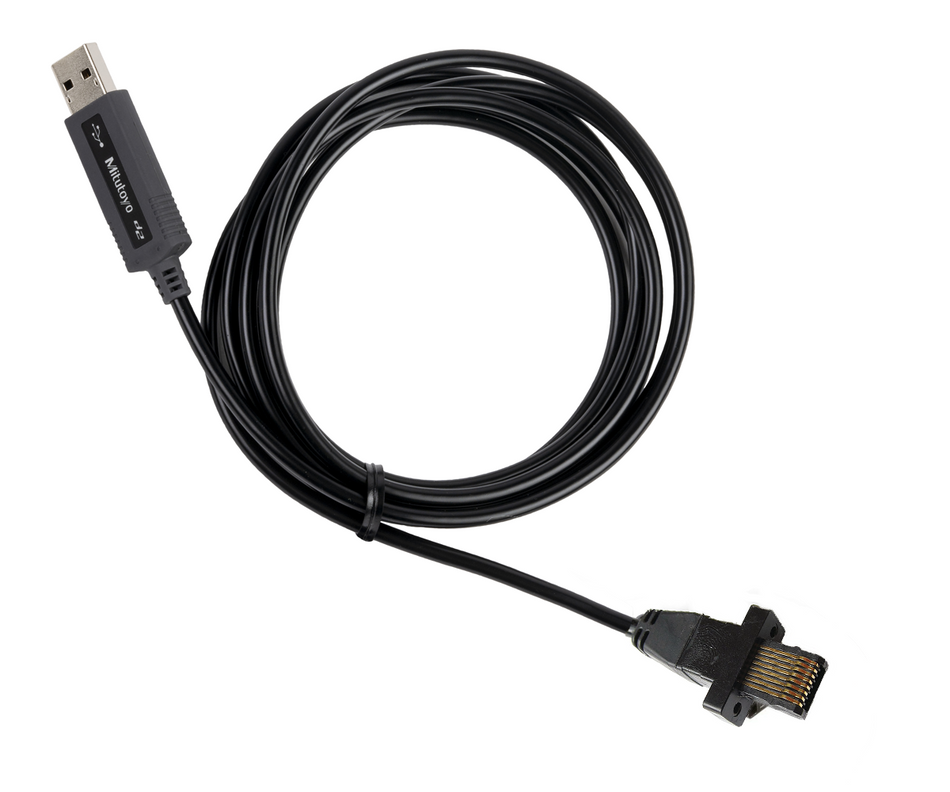

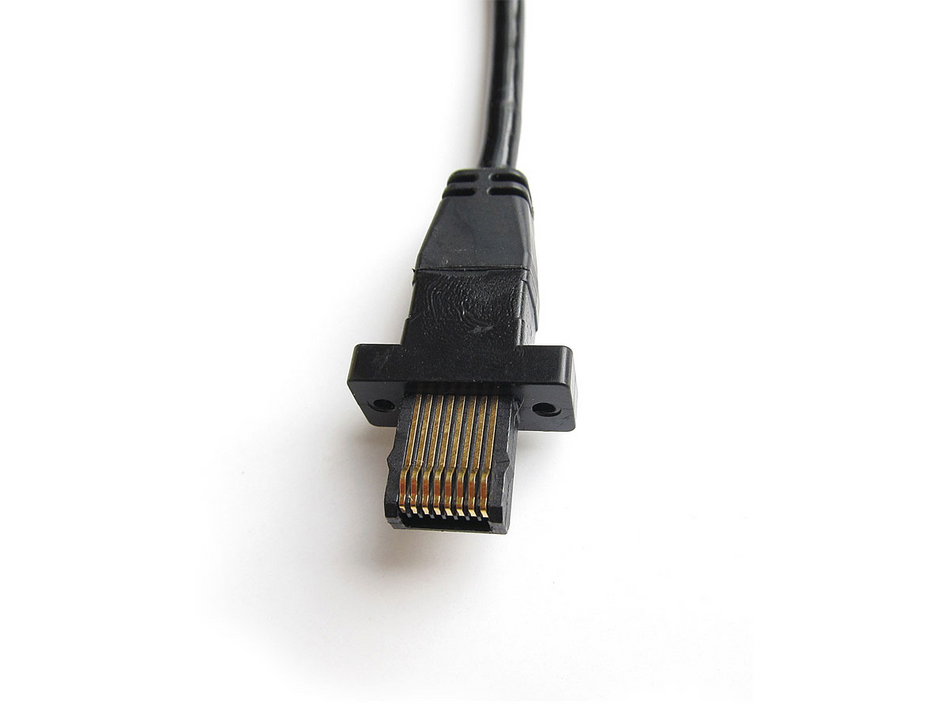

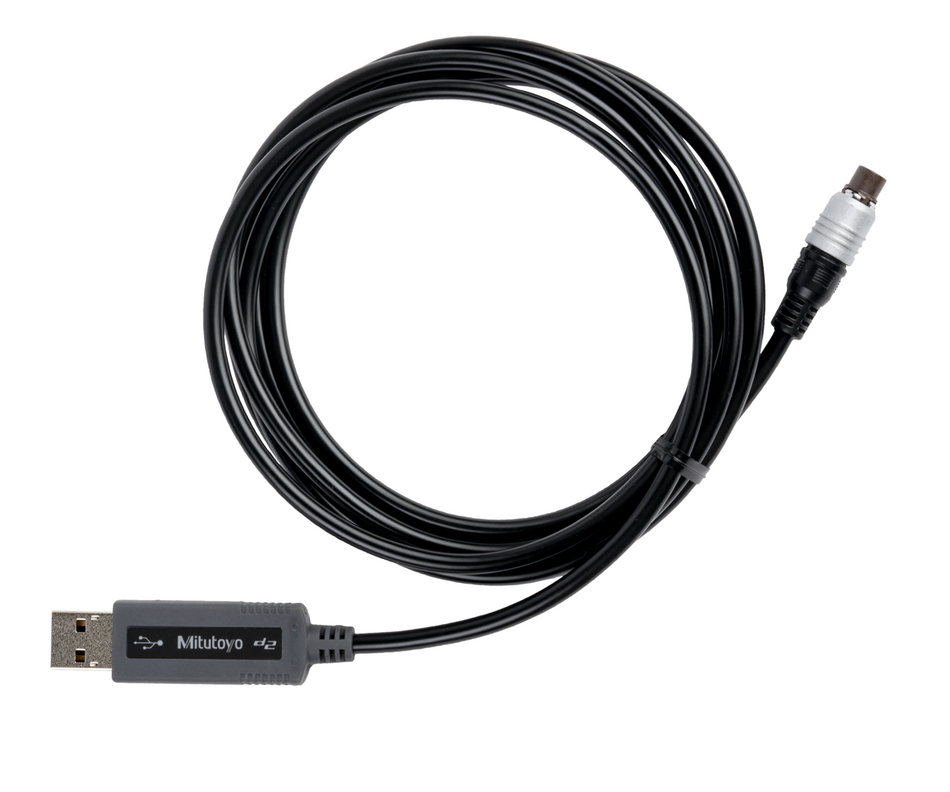

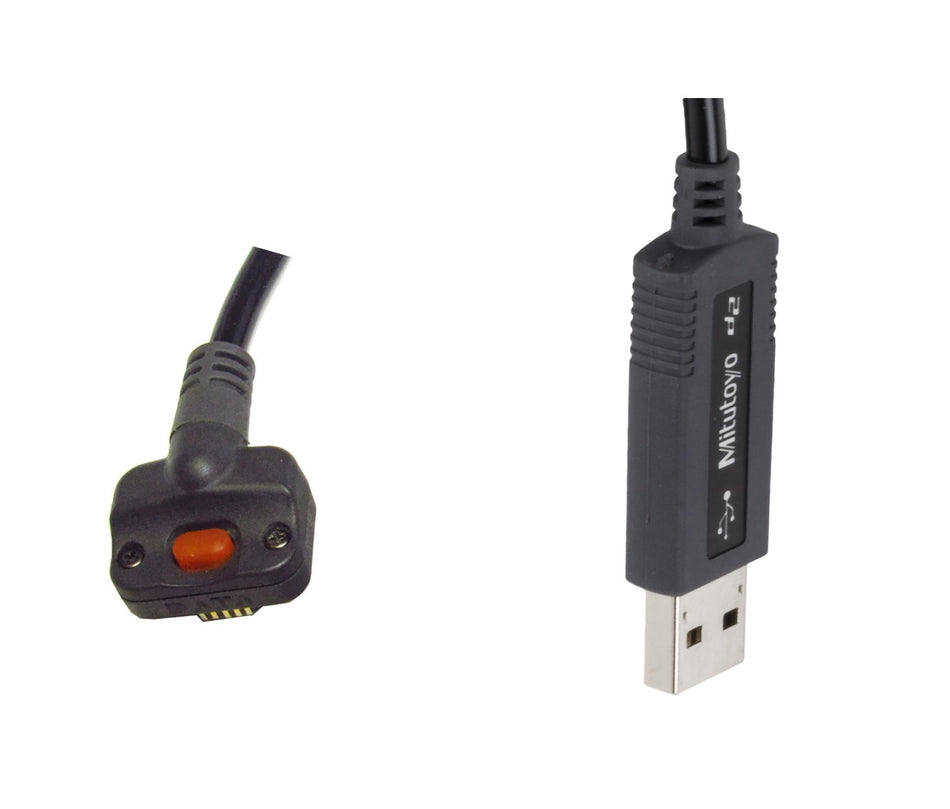

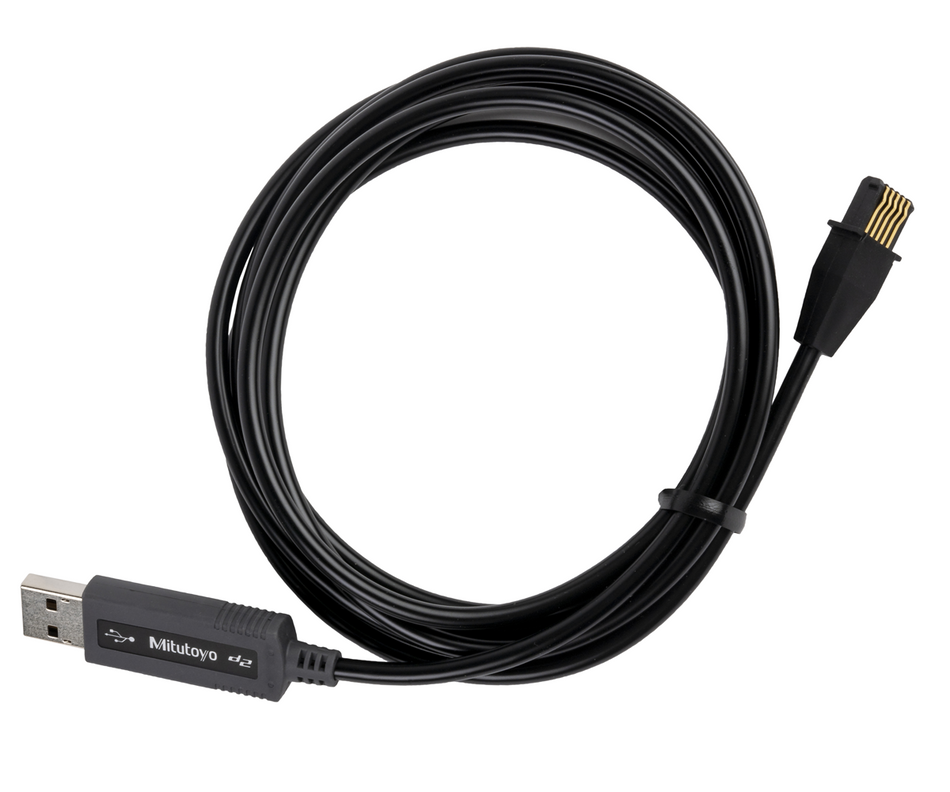

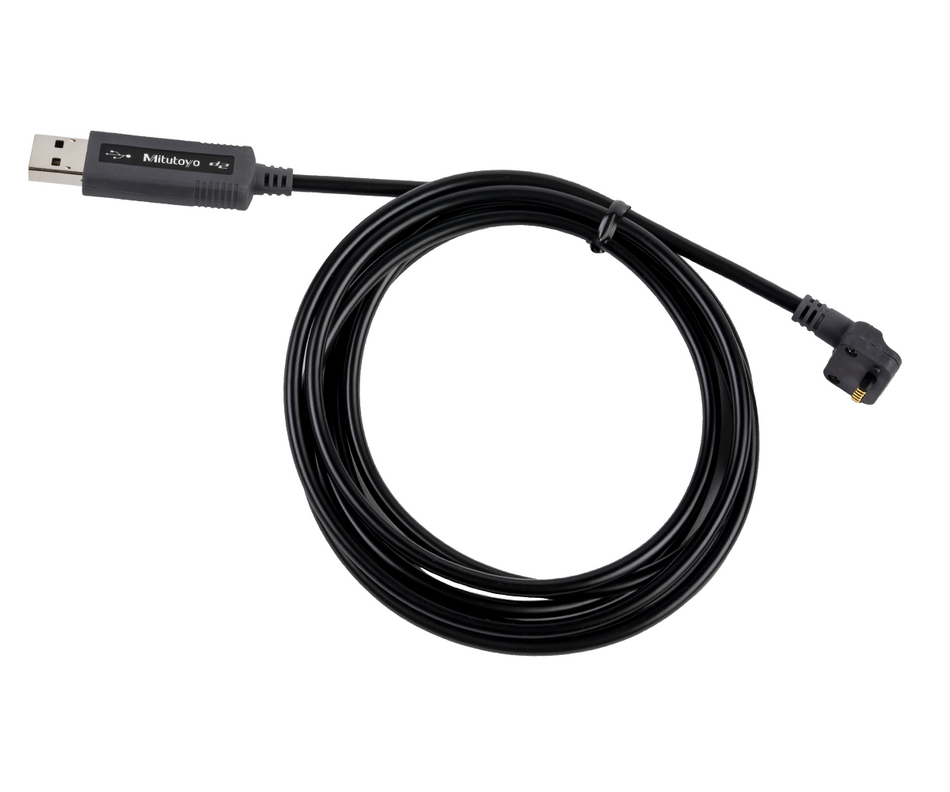

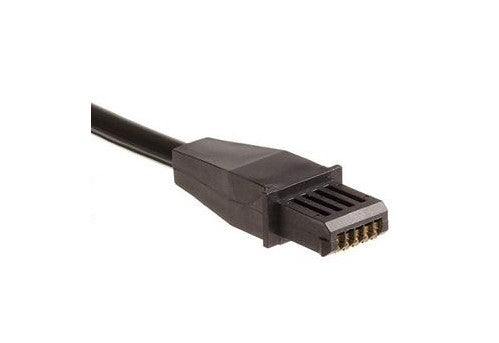

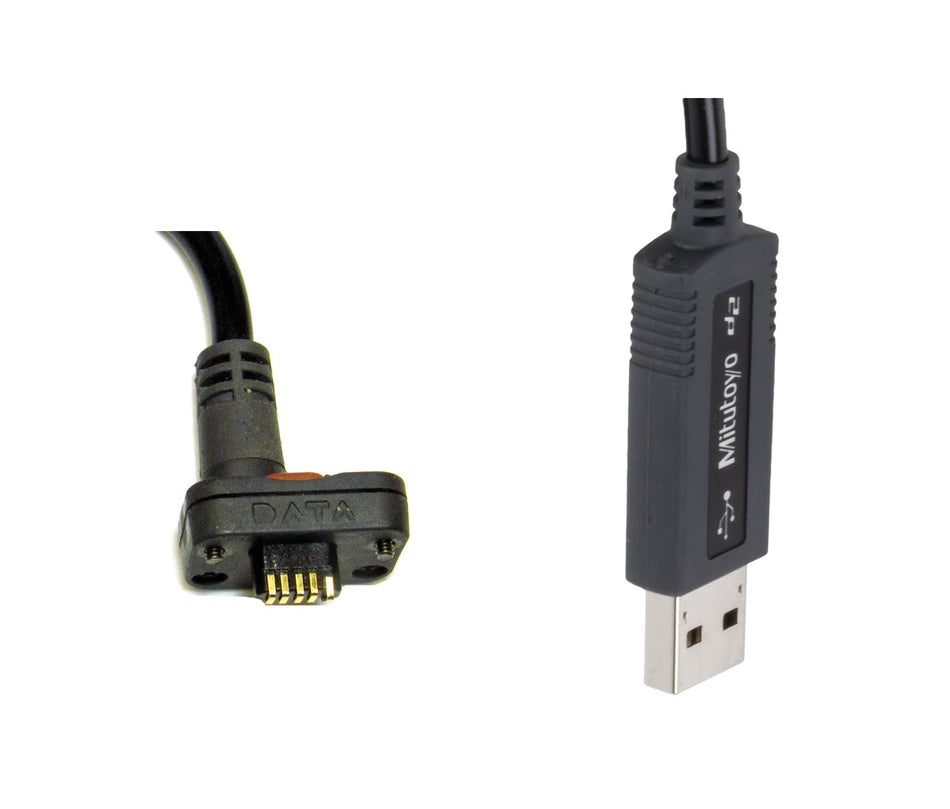

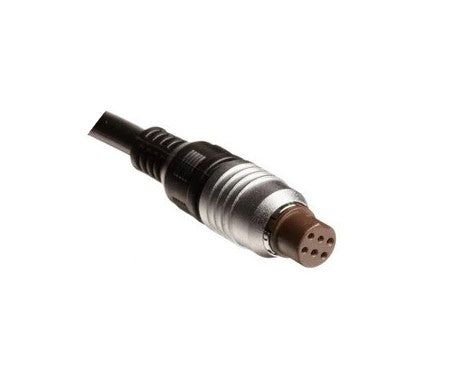

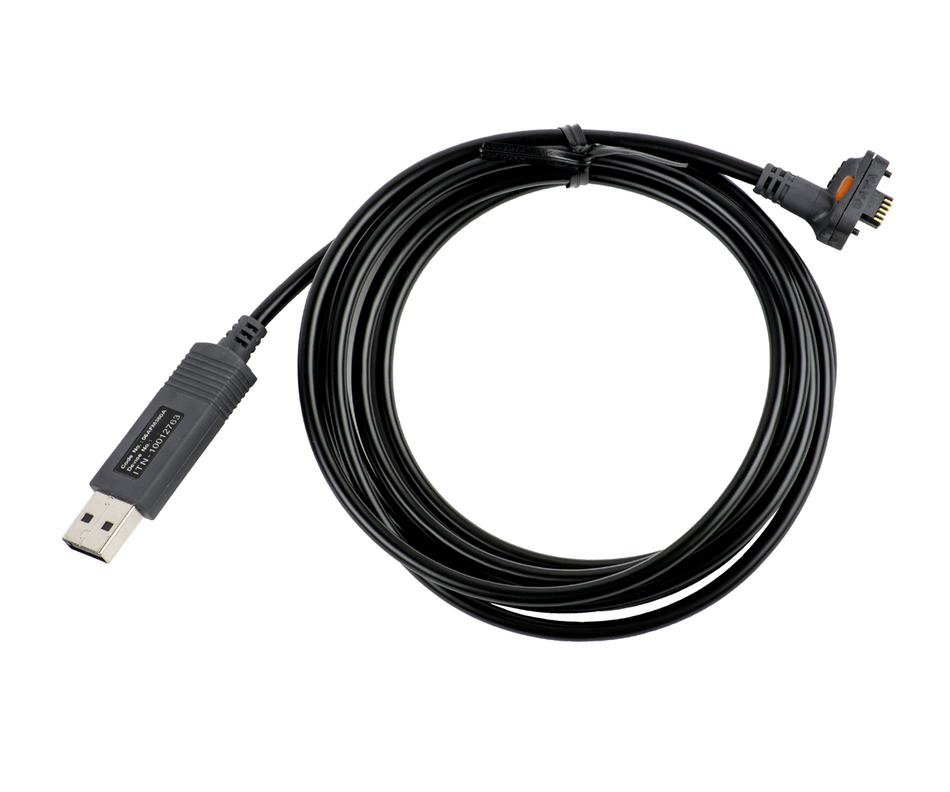

| Cable Type | Water-proof with switch | Water-proof with switch | With Switch | 10-pin plain | 6-pin round | Straight Type | Water-proof Straight Type |
| Connector Illustration |  |  |  |  |  |  |  |
| Gage Connector |  |  |  |  |  |  |  |
| Compatible Gage | 550 / 551 series Caliper 552 series Carbon Fiber Caliper 571 series Depth Gage 572 series Scale Unit 573 series Caliper | 293 / 337 / 339 / series Micrometers 350 series Micrometer Heads 468 series Holtest | 164 series Micrometer Head 500 series Caliper 550 / 551 series Depth Gage 572 series Scale Unit 573 series Caliper | 178 series Surftest 179 series Thickness Gage 518 series Linear Height 543 series IDH Indicators 544 series Laser Scan Micrometers | 121 / 164 / 227 / 293 / 337 / 339 / series Micrometers 468 series Holtest 568 series Borematic 810 series Hardness Testers | 192 / 570 / 574 series Height Gages 500 / 550 / 551 series Calipers 511 series Bore Gage 543 series IDC Indicators 547 series Depth Gages 552 series Carbon Fiber Caliper | 543 series IDN, IDB Indicator |
