DIGITAL SPLINE MICROMETERS
PRECISION Thickness MEASURING

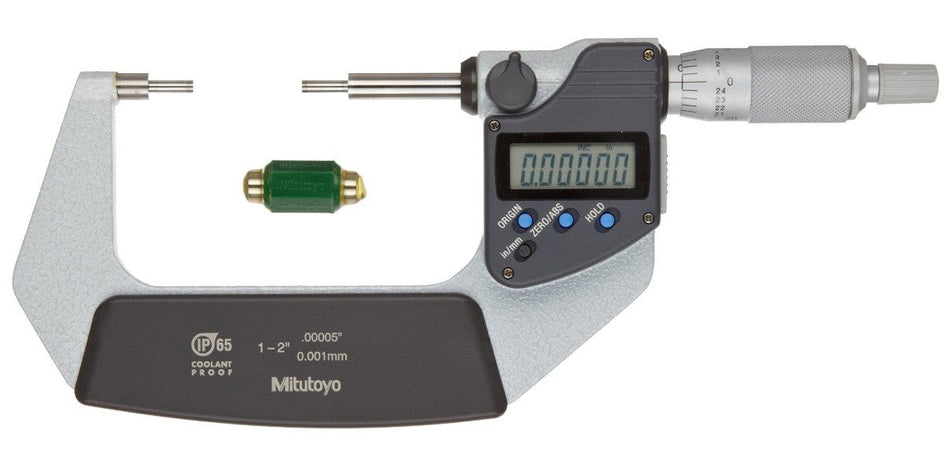

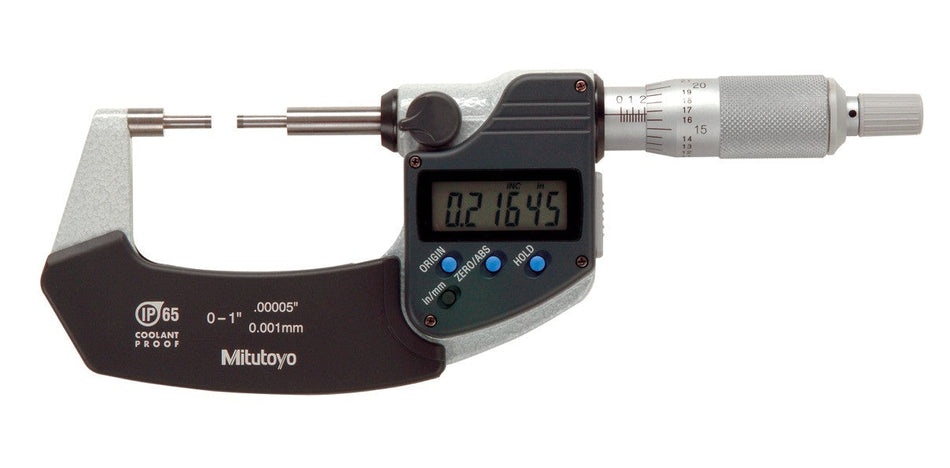

Digital Spline Micrometers are a specialized type of digital micrometer that are designed specifically for measuring the dimensions of splined shafts and other complex geometries with high accuracy and repeatability. They are commonly used in the manufacturing and quality control of automotive and aerospace components, as well as other precision machined parts.
Digital Spline Micrometers operate on the same principles as standard digital micrometers, but are designed with a unique anvil and spindle configuration that allows for the precise measurement of splined shafts. The anvil and spindle are both shaped to fit the contour of the spline, allowing for accurate and repeatable measurements. The digital readout provides precise measurements in digital format, which can be easily recorded and analyzed.
One of the key advantages of Digital Spline Micrometers is their ability to measure the dimensions of splined shafts and other complex geometries with high accuracy and repeatability. They typically have a measuring range of up to 1” or 25mm, and can measure dimensions to within a thousandth of an inch or a hundredth of a millimeter.
Digital Spline Micrometers may also come with additional features such as data output capabilities, zero-set buttons, and locking mechanisms to prevent unintentional movement during measurement.
Overall, Digital Spline Micrometers are essential tools for ensuring the precise measurement of splined shafts and other complex geometries in a variety of industrial and manufacturing applications. Their unique anvil and spindle configuration allows for accurate measurements of even the most intricate splined shapes, and their digital readout provides quick and easy analysis of measurement values.
