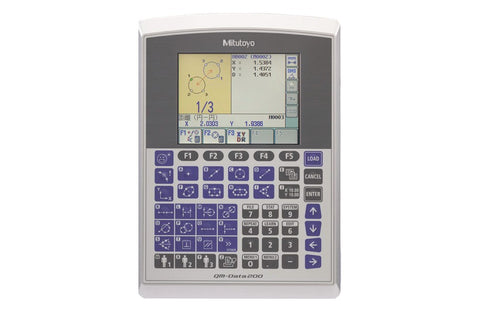

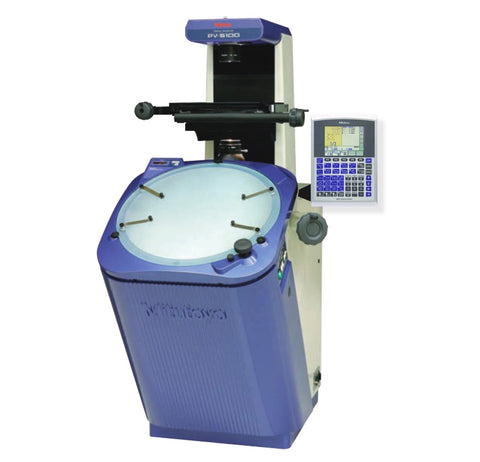

Mitutoyo PV-5110 Optical Comparator w/ 20" Screen The PV-5110 Optical Comparator is a floor model profile projector that uses a downward illumination system. The large rotatable screen has an effective screen diameter of 20" (508mm), and when the 5X projection lens is used, the large screen allows projection of complete workpieces with a diameter of up to 3.94" (100mm). In addition, the low screen position enables simple, ergonomic operation and reduces fatigue even when working for long periods. The angled screen also allows for projected images to easily by traced or compared with a template. Included in this package... PV-5110 Main Unit 10x Projection Lens Set Surface Illumination Unit QM-Data 200 Digital Display Optoeye 200 Edge Detection FREE Freight Mitutoyo PV-5110 Brochure...Click here QM-Data 200 with Arm Mount Digital Display The QM-Data200 is a geometric readout / analysis unit for optical instruments like profile projectors. It features powerful 2D coordinate measurement capabilities with simple key operation. The QM-Data200 improves operator productivity, minimizes errors and saves total measurement time and production cost, while providing powerful data analysis. Measurement information and data are displayed on the back-lit LCD display with graphical interfaces. The QM-Data lets you easily perform the following measurements: Point-to-Point Distance Line-to-Pont Distance Line-to-Circle Distance Circle-to-Circle Distance Perpendicularity Parallelism Angles Distance between Steps Optoeye 200 Edge Detection Designed for use exclusively with the Mitutoyo QM-Data 200, the Optoeye 200 Edge Detection helps make measurements more accurate and more repeatable by eliminating the human element. The Optoeye is a small, fiber optic camera that recognizes the movement of your part on a profile projector by monitoring the image on the profile projector. When the image changes from dark (shadow) to light, the Optoeye recognizes the exact point where that change occurred. This allows you to not only increase the speed of the measurements, but also make the measurements more accurate and more repeatable between different operators. Mitutoyo QM Data 200 Brochure...Click here This Package includes Free Freight Anywhere in Continental USA. SaveSaveSaveSaveSaveSave
