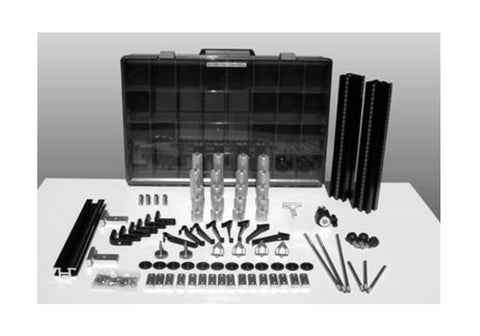

The FixLogix Standard Metric Component Kit for modular CMM fixtures is the most effective and economical fixture system on the market today. An uncommonly wide variety of components such as vertical towers, cross-slide, and swivel-head are provided to improve setup flexibility.The kit design and configuration allows individual components to be multi-tasked and combined into an unlimited variety of fixture setups for a wide range of part types.FixLogix components are compatible with our FixLogix CMM Fixture Plates. These components are predominantly stainless steel and anodized aluminum for corrosion resistance. Includes the following components... Standoffs (4) #MCS25-1: 25mm length x 25.4mm dia. standoff (4) #MCS38-1: 37.5mm length x 25.4mm dia. standoff (4) #MCS50-1: 50mm length x 25.4mm dia. standoff (4) #MCS75-1: 75mm length x 25.4mm dia. standoff (4) #MCS100-1: 100mm length x 25.4mm dia. Standoff Fasteners (41) #MCTS8: M6 set screw SS, with nylon tips (Used in T-nuts and right angle 2-way T-nuts) (3) #MCTS: stainless thumbscrew with knurled top (For use with cross-slide assembly) (16) #MCTN1: T-nuts, 37.5mm long with (2) M6 threaded holes (Used in T-slots of fixture plate or vertical riser) (12) #MCLN: locknut with M6 threaded ID (For use with clamp rods, thumbscrew, and spherical locator pin) Clamps and Rods (8) #CTSC01: “Soft-touch” self-wedging tail-spring clamp (Patent pending self-wedging clamp works with clamp rods) (3) #MCR6-100T: Stainless clamp rod, 100mm long with M6 threaded end(3) #MCR6-200T: Stainless clamp rod, 200mm long with M6 threaded end (Use with locknut to attach rods to plate or standoffs) Locating Accessories (2) #MCJSM6: Mini jack-screw with M6 thread (Jackscrew and locknut are attached to standoff to create a mini jackstand) (4) #MCCLL: Large conical locator, 25,4mm dia. with M6 stud (For locating in holes 3.5mm- 21mm, and may create Vee configurations) (2) #MCSWS: Swivel head assembly for horizontal or angular clamping setups, M6 post (For multi-angle clamping or basing points) (1) #MCCSA300, Cross-slide assembly, 300mm, laser engraved, with mounting clamps (Allows infinite adjustments, and XY angles to t-slots. Engraved scale for repeat setups) (4) #MCAR0251: Adjustable rest button, stainless, spherical top, M6 thread (Used with standoff, creates a 2-way locator or mini jackstand w/ spherical tip) Risers and Accessories (2) #MCLR300: 300mm vertical linear riser, laser engraved, w/ six t-slots: 2 x 2 + 1 x 1. (Provides vertical setup functionality, laser engraved scales for easy repeat setups) (6) #MCAC-901 Right-angle connectors for risers, with (6) M6 threaded holes (Provides mounting for risers...is a 2-way t-nut, also acts as tooling component) Component Case (1) #CKCC: Component case with compartments, 475mm x 300mm x 75mm
