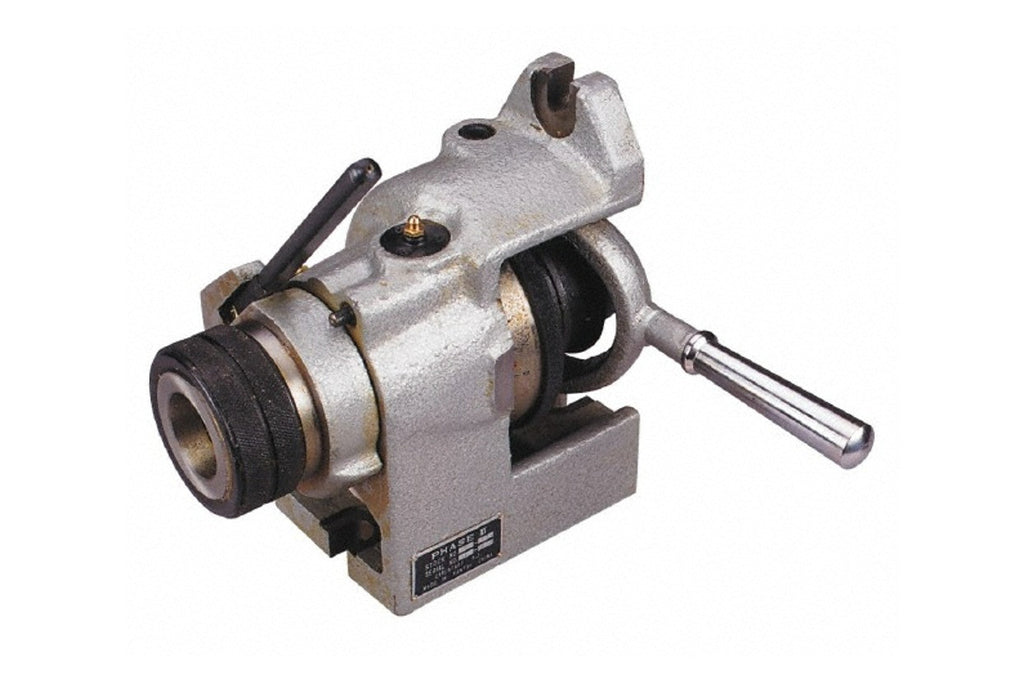

Horizontal / Vertical 5C Collette Indexer

Features include...

• Spindle is manufactured with tapered seat in body frame
• Lever operated collet closer with 100:1 leverage ratio
• Front mounted ratchet control for rapid indexing
• Furnished with a 24 space indexing plate
• Dividing spindle concentricity: 0.0002"
• Cylindrical center bore (per 1"): 0.0008"
• Spindle centerline parallelism: 0.0008"
• Base to face squareness: 0.0008"
• Center slot to dividing spindle concentricity: 0.0008"
• Lateral offset of center slot of dividing spindle: 0.0008"
