369-421-20 Mitutoyo Disc Micrometer Non-Rotating Spindle 0-1.2
369-421-20 Mitutoyo Disc Micrometer Non-Rotating Spindle 0-1.2

369-421-20 Mitutoyo Disc Micrometer Non-Rotating Spindle 0-1.2"

$ 1,110.00$ 1,054.50

Customer Reviews

Product Description

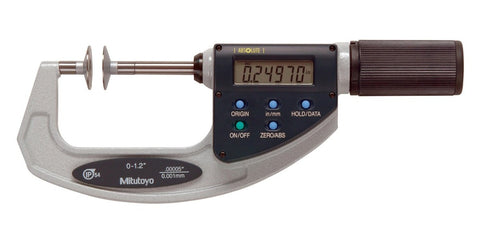

Mitutoyo Disc Micrometer with Non-Rotating Spindle & SPC Output

The Disk Micrometer is designed to easily measure root tangent length of spur gears and herical gears. Non-rotating spindle eliminates torque on workpiece.

This Quickmike style micrometer offers a speedy spindle feed of 10mm per revolution.

Features include...

  • 0-1.2" / 0-30.48mm Measuring Range
  • 0.00005" / 0.001mm Resolution
  • Diameter of measuring disk: 20mm / .787
  • 0.7mm / .028 edge thickness to enter narrow recesses.
  • With Ratchet Stop for constant force.
  • With SPC output.
  • Supplied in fitted plastic case.

Functions include...

  • Origin-set
  • Zero-setting
  • Data hold
  • Data output
  • inch/mm conversion
  • Alarm: Low voltage
