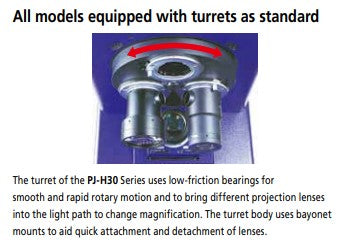

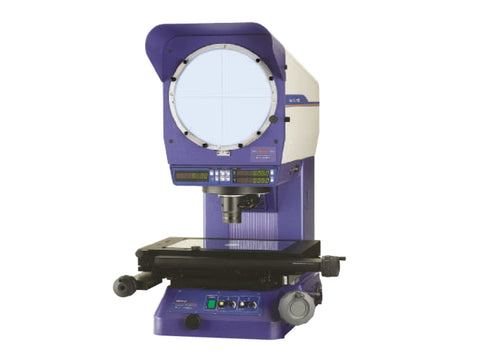

Mitutoyo's PJ-H30A Vertical, High Accuracy Optical Comparator Mitutoyo's newly designed Vertical Optical Comparator with high NA lenses provides drastically brighter and clearer screen images during surface illumination. The Easy-to-Read digital counters are located near the projection screen, thereby minimizing strain associated with excessive movement. A digital angle display eliminates the need to perform complex calculations. The included Digital Readout Protractor screen facilitates angle measurements. The three-lens mounting turret includes a 10X lens as standard. 5X, 20X, 50X & 100X lenses are available. A floating table makes measuring quick and easy. PJ-H30A2010B features include the following... 12" Diameter Screen 8" x 6.7" / 200mm x 170mm Measuring Range 0.0001" / 0.001mm Resolution 16.1" x 13.5" Table Size 4.1" / 105mm Max Workpiece Height 44lbs Max Workpiece Load This package includes the following... PJ-H30 Main Unit with 10X Lens Mitutoyo Optical Comparator Stand FREE Freight Anywhere in the Continental USA High Visibility Digital Display Since the digital counter (XY axes and angle) built into all models as standard uses a high-intensity LED and a large-character display, it secures high visibility unaffected by the environment. In addition to zero-setting and direction change, the data output of each counter value adopts the highly versatile RS-232C.
