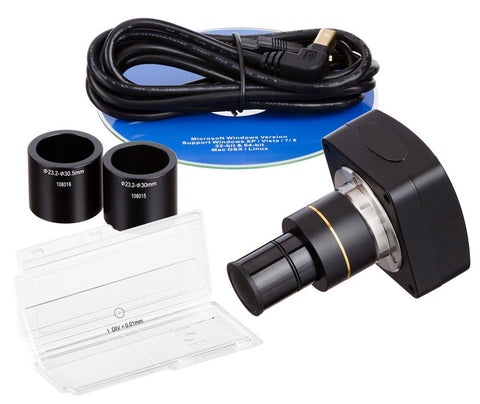

3.0 Megapixel USB Color Digital Camera with Calibration Kit This camera system is specially designed for microscopes, making it easy to display live microscope images on your PC. Works with Mitutoyo Toolmakers Microscopes! Included in the package is software that allows you to preview images, record videos, capture still images, edit captured images, and save the images in a variety of different formats. The software also allows you to perform length, angle, area and other measurement functions. Features include... Image Sensor: 1/2" Color CMOS (Micron) Pixel Size: 3.2 micron x 3.2 micron Hardware Resolution: 2048 x 1536 pixels Imaging Resolution: 3.1 MP File Format: BMP, TIFF, JPG and others Frame Rate: 30 f/s @ 640x480, 11 f/s @ 2048 x 1536 pixels Sensitivity: 1.0V/lux-sec @ 550nm Speed: Low/high adjustable White Balance: Auto/Manual Exposure Time: 1ms to 0.3s Exposure Control: Auto/Manual Scan Mode: Progressive Shutter: Electronic Rolling Shutter S/N Ratio: 43 dB Dynamic Range: 61 dB Filter: RGB Bayer Pattern Parameter: Gain (1~40), Gamma (0.1~2.50) Mount: 23mm Photo Port, C & CS-Mount (Ring Adapter Included) Camera Body: Cast Aluminum Power Supply: Via USB 2.0 connector System Required: Windows 2000, XP, Vista or Windows 7 (32 & 64 bits system) with USB 2.0 port Software Calibration Kit One year full-coverage warranty
