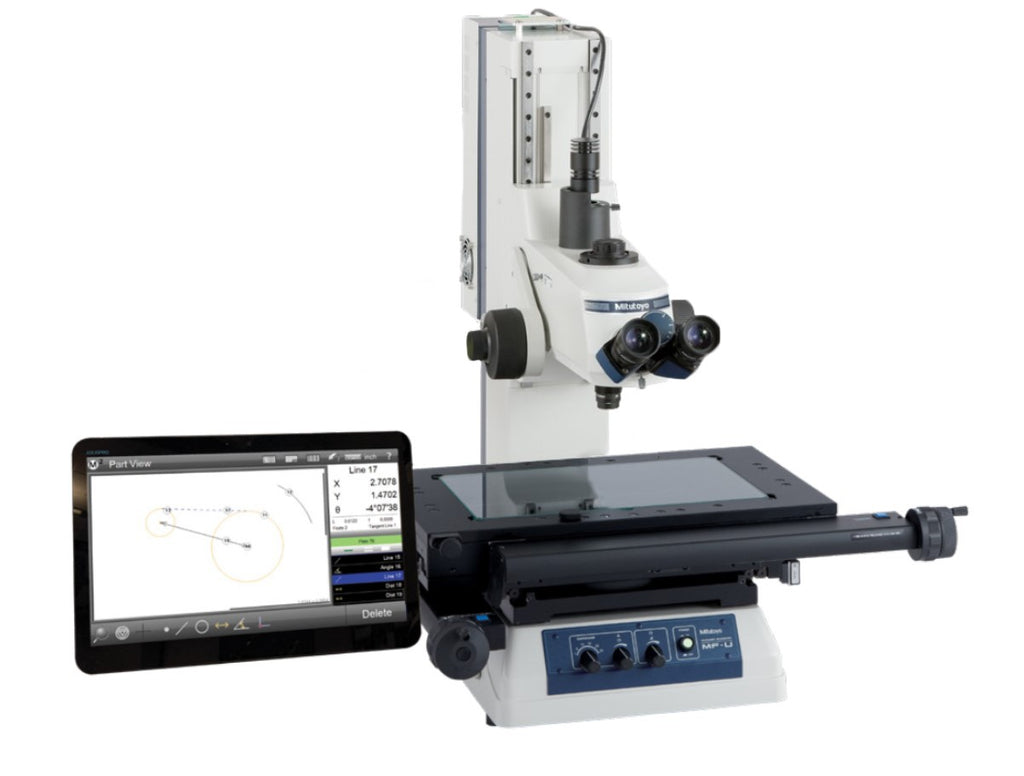

Mitutoyo's new MF Measuring Microscope with M2 Software and Touch-Screen Tablet The Mitutoyo MF Microscope is a reliable monocular device for precise geometric measurements in a 8" x 7" range. Its M2 Geometric Measuring Display provides convenient and accurate visual feedback to ensure effective quality control and inspection. Whether you're a professional or amateur user, the MF Microscope can help you make accurate measurements with ease. Features include... 8" x 7" / 200mm x 170mm Measuring Range Accuracy: (2.2+0.02L) L: measuring length (mm) Highest Measuring Accuracy in its class Monocular Tube Erect Image 10X Eyepiece is Standard 3X Objective is Standard Quick release mechanism and zero-set buttons on stage controls increase operability when working larger workpieces. Include LED & Halogen illumination Coaxial Coarse & Fine Feed Easy to Use Touch Screen Display M2 Geometric 2D Measurement Software Wide Range of Objective available, from 1x to 100x Package includes FREE Shipping, On-Site Installation and Initial Calibration. Quick Release Mechanism The manual stage provides intuitive positioning and can be easily moved rapidly between measuring positions on a workpiece by using the quick release function on each axis. Just free a Quick Release Wheel and move the stage by pushing and pulling. Lock the wheel to continue measurement with fine feed. Very effective for traversing between widely separated positions.
