Meyer Class Z Pin Gage Sets - Metric

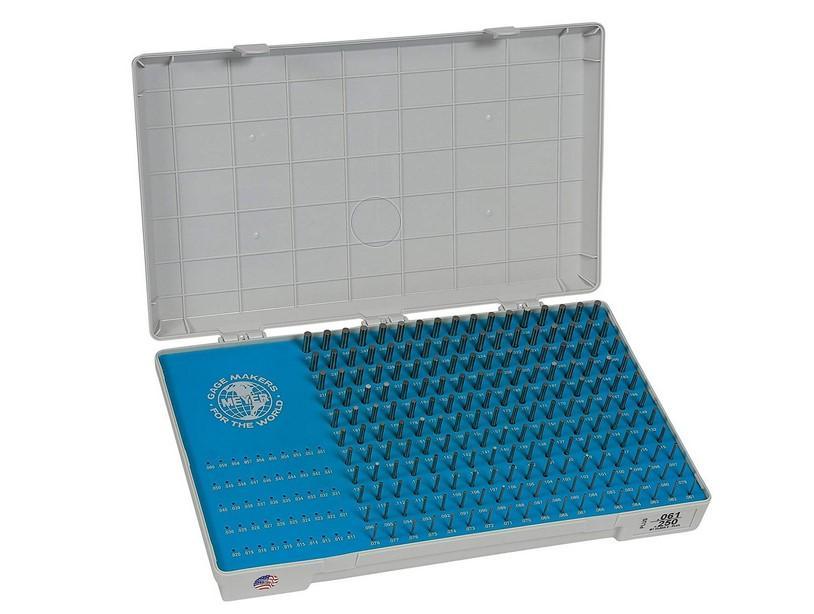

Meyer Class Z Pin Gage Set

Introducing the MEYER Z Pin Gage Set.

The original Class ZZ Gage Pin goes back to 1965, with a standard size deviation of .0002". Meyer Gage Company now offer a Class Z tolerance Gage Pin with a closer tolerance of .0001". which is twice as accurate and better for your needs. Meyer has made a better pin gage that no other has attempted with the same great features listed below.

OLD Class ZZ

Size deviation .0002”
Roundness geometry .0001”
Surface finish 10 micro

NEW Class Z

Size deviation .0001”
Roundness geometry .00005”
Surface finish 8 micro

The Meyer Gage Class Z gage pin will meet or exceed the requirements of Class ZZ, and can replace the Class ZZ in any situation or application. Our gages have more features than gages costing twice the price.

Features include...

  • All gages and sets are traceable to N.I.S.T.
  • Boxes and gages both marked
  • Size and serial number laser etched on each piece (M-O not etched)
  • Material: 52100 Bearing Steel
  • No sharp edges
  • All members 2” long

Uses include...

  • Checking locations
  • Measuring hole sizes and depth
  • GO & NO/GO gaging
  • Setting micrometers
  • Checking distances between holes

Finish includes...

  • Centerless lapped
  • Each gage is inspected and has a 8 microfinish or better
  • Heat treated to a hardness of 60-62 Rockwell C
  • All English gages with .0001″ limit



Looking for Meyer Standard Class Z Pin Gage Sets? Click Here

Meyer Metric Pin Gage Set 0.23mm - 1.51mm, M01MMP M01MMM Meyer Pin Gages Meyer

Meyer Metric Pin Gage Set 0.23mm - 1.51mm, M01MMP M01MMM

Save $ 13.20
Meyer Metric Pin Gage Set 1.53mm - 7.71mm, M11MMP M11MMM Meyer Pin Gages Meyer

Meyer Metric Pin Gage Set 1.53mm - 7.71mm, M11MMP M11MMM

Save $ 44.40

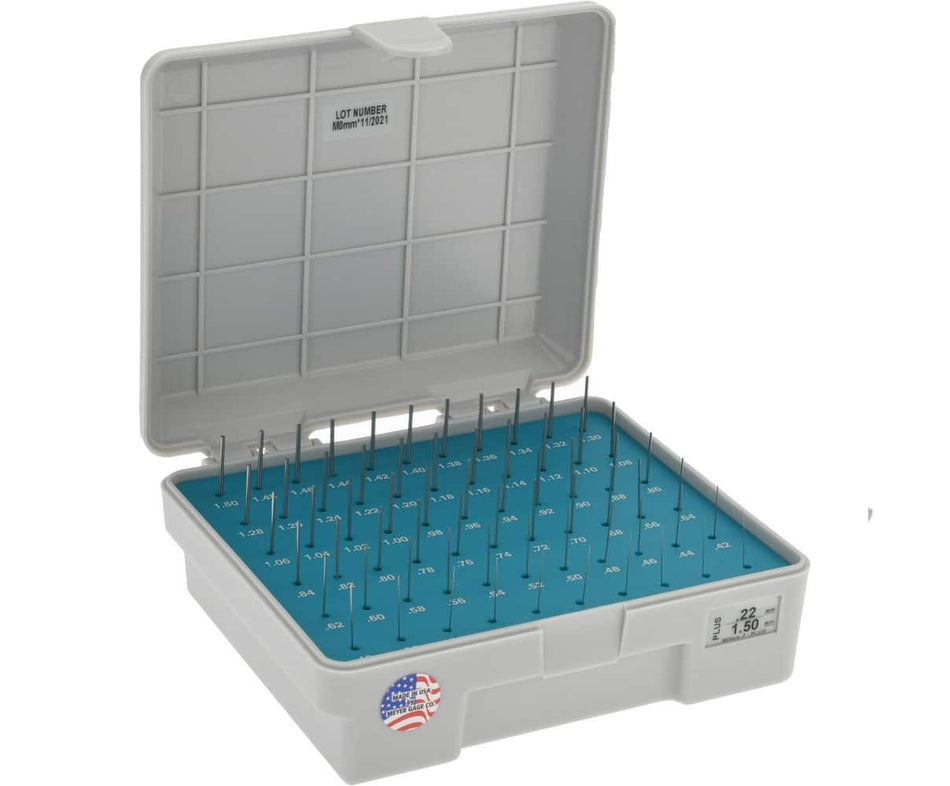

Meyer Metric Pin Gage Set .22-1.50mm, M0MMP M0MMM Meyer Pin Gages Meyer

Meyer Metric Pin Gage Set .22-1.50mm, M0MMP M0MMM

Save $ 12.40

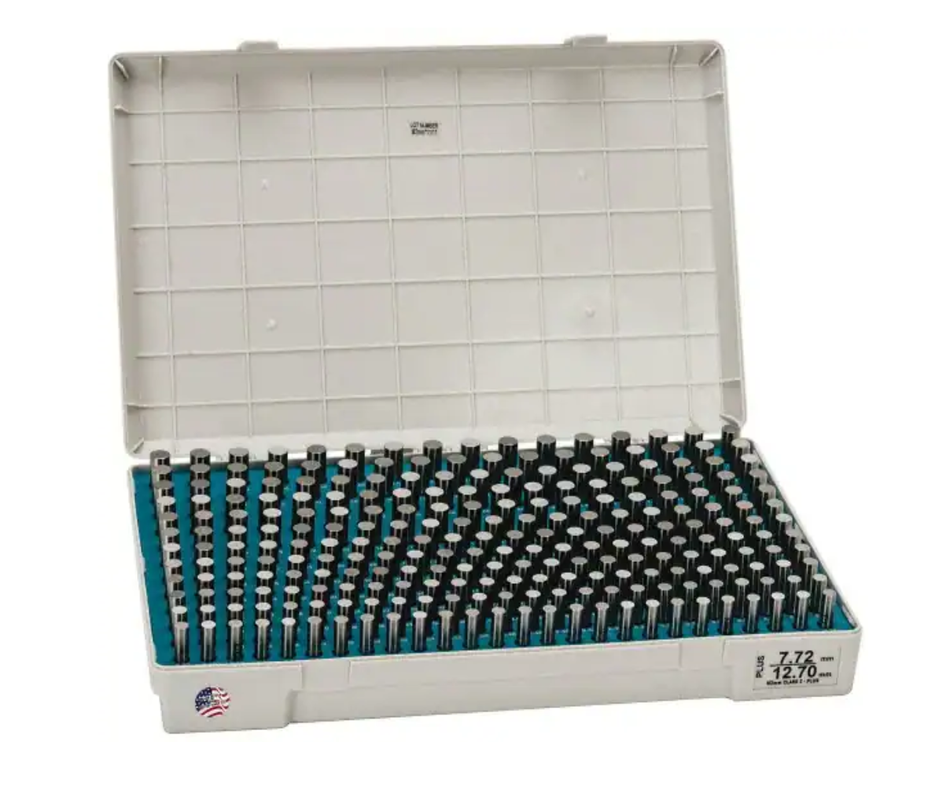

Meyer Metric Pin Gage Set 7.72mm - 12.70mm, M2MMP M2MMM Meyer Pin Gages Meyer

Meyer Metric Pin Gage Set 7.72mm - 12.70mm, M2MMP M2MMM

Save $ 47.20

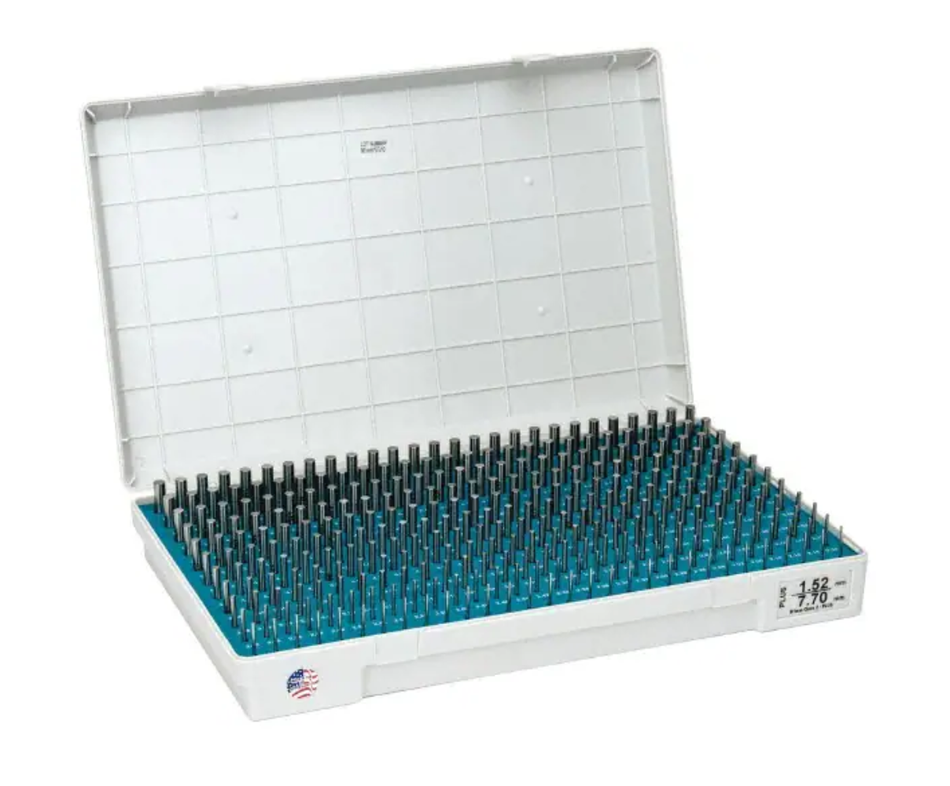

Meyer Metric Pin Gage Set 1.52mm - 7.70mm, M1MMP M1MMM Meyer Pin Gages Meyer

Meyer Metric Pin Gage Set 1.52mm - 7.70mm, M1MMP M1MMM

Save $ 44
Meyer Metric Pin Gage Set 23.75mm - 25.41mm, M81MMP M81MMM Meyer Pin Gages Meyer PLUS

Meyer Metric Pin Gage Set 23.75mm - 25.41mm, M81MMP M81MMM

Save $ 94
Meyer Metric Pin Gage Set 23.74mm - 25.40mm, M8MMP M8MMM Meyer Pin Gages Meyer PLUS

Meyer Metric Pin Gage Set 23.74mm - 25.40mm, M8MMP M8MMM

Save $ 93.60
Meyer Metric Pin Gage Set 22.07mm - 23.73mm, M71MMP M71MMM Meyer Pin Gages Meyer PLUS

Meyer Metric Pin Gage Set 22.07mm - 23.73mm, M71MMP M71MMM

Save $ 91.60
Meyer Metric Pin Gage Set 22.06mm - 23.72mm, M7MMP M7MMM Meyer Pin Gages Meyer PLUS

Meyer Metric Pin Gage Set 22.06mm - 23.72mm, M7MMP M7MMM

Save $ 90.80
Meyer Metric Pin Gage Set 20.39mm - 22.05mm, M61MMP M61MMM Meyer Pin Gages Meyer PLUS

Meyer Metric Pin Gage Set 20.39mm - 22.05mm, M61MMP M61MMM

Save $ 79.20
Meyer Metric Pin Gage Set 20.38mm - 22.04mm, M6MMP M6MMM Meyer Pin Gages Meyer PLUS

Meyer Metric Pin Gage Set 20.38mm - 22.04mm, M6MMP M6MMM

Save $ 78.80
Meyer Metric Pin Gage Set 17.83mm - 20.37mm, M51MMP M51MMM Meyer Pin Gages Meyer PLUS

Meyer Metric Pin Gage Set 17.83mm - 20.37mm, M51MMP M51MMM

Save $ 66.40
Meyer Metric Pin Gage Set 17.82mm - 20.36mm, M5MMP M5MMM Meyer Pin Gages Meyer PLUS

Meyer Metric Pin Gage Set 17.82mm - 20.36mm, M5MMP M5MMM

Save $ 66
Meyer Metric Pin Gage Set 15.33mm - 17.81mm, M41MMP M41MMM Meyer Pin Gages Meyer PLUS

Meyer Metric Pin Gage Set 15.33mm - 17.81mm, M41MMP M41MMM

Save $ 56
Meyer Metric Pin Gage Set 15.32mm - 17.80mm, M4MMP M4MMM Meyer Pin Gages Meyer PLUS

Meyer Metric Pin Gage Set 15.32mm - 17.80mm, M4MMP M4MMM

Save $ 55.60
Meyer Metric Pin Gage Set 12.73mm - 15.31mm, M31MMP M31MMM Meyer Pin Gages Meyer PLUS

Meyer Metric Pin Gage Set 12.73mm - 15.31mm, M31MMP M31MMM

Save $ 52.80
Meyer Metric Pin Gage Set 12.72mm - 15.30mm, M3MMP M3MMM Meyer Pin Gages Meyer PLUS

Meyer Metric Pin Gage Set 12.72mm - 15.30mm, M3MMP M3MMM

Save $ 52.40
Meyer Metric Pin Gage Set 7.73mm - 12.71mm, M21MMP M21MMM Meyer Pin Gages Meyer

Meyer Metric Pin Gage Set 7.73mm - 12.71mm, M21MMP M21MMM

Save $ 47.60
