MMP Standard Digital Length Gage w_SPC Output, Various Sizes Digital Length Gages US Made

MMP Standard Digital Length Gage w_SPC Output, Various Sizes

$ 1,082.02$ 983.65

Customer Reviews

Customer Reviews

Based on 4 reviews Write a review

Product Description

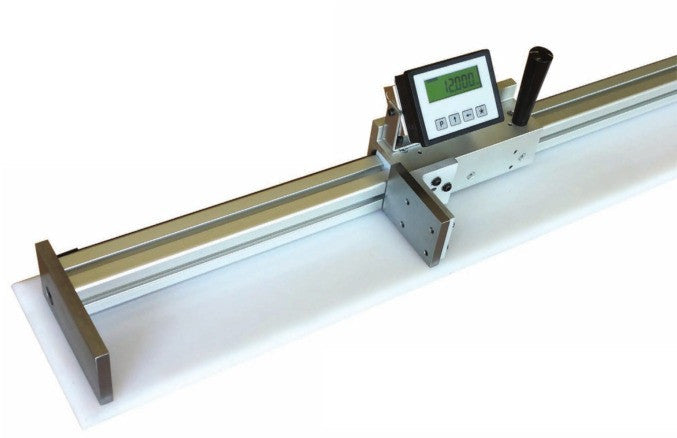

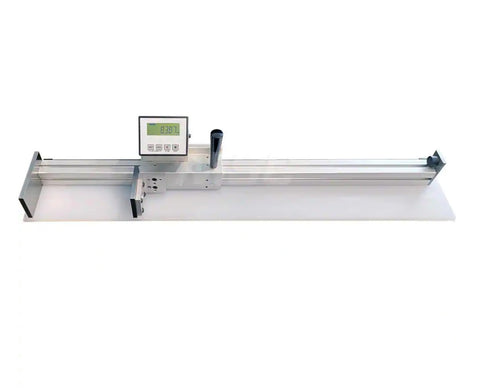

The MMP Digital Length Gage offers a rugged alternative to calipers for longer length measuring.

Not only does the MMP boast larger anvils than calipers, it is also available in longer lengths and offers a non-marring surface for the material to rest while being measured. Thus, eliminating errors from the tool being misaligned with the surface of the part.

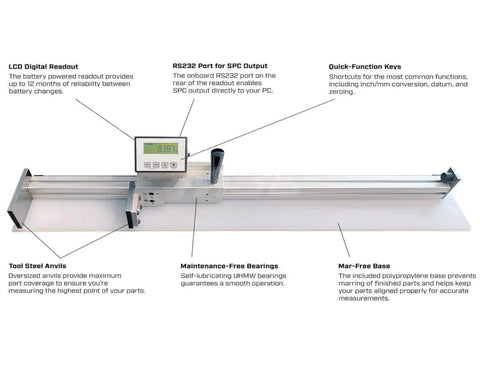

Features include...

  • 0.001" / .01mm / 1/64" Resolutions
  • 3.375" x 2.25" Standard Size Anvil
  • Easy to read LCD Digital Readout
  • Inch, mm, & fractional display
  • IP67 Rated Protection on Scale
  • IP60 Rated Protection on Display
  • Display includes Industrial Grade "C" Battery
  • Adjustable parameters for presets, datum, and offsets.
  • Standard Base Material is UHMW (Ultra High Molecular Weight) Polyethylene
    • UHMW Polyethylene is highly resistant to abrasion
  • SPC Output
  • Includes Certificate of Calibration.

Lead Times

The current Lead Time to ship is approximately 16 weeks after receipt of order.

We understand that the current lead time to ship out these Digital Length Gages is long and inconvenient. Recently our Digital Length Gage manufacturer received an order of close to 80 Digital Length Gages. While great for the manufacturer, this has pushed out the lead times for our Digital Length Gage orders to anywhere from 12 to 18 weeks, depending upon the model of gage.

In an effort to try to help ease some of the inconvenience that these new lead times are creating, we have decided to offer the following purchase options for customers looking to order these Digital Length Gages...
  1. You can always place and pay for the order in full, here on our website as normal.
  2. Without any credit approval process, you can email us a Purchase Order.
    1. We will require a 25% down payment, and then require payment in full at the time of shipping.
  3. With credit approval, we can set up a NET 30 account for you, and then you can email in a Purchase Order with NET 30 terms.

To discuss these options in more detail, please emailus at sales@greatgages.com. Or you can call us toll-free at 1-866-460-1942.

Select Measuring Range from Pulldown menu.

All Units 96" and longer must ship via LTL Truck.

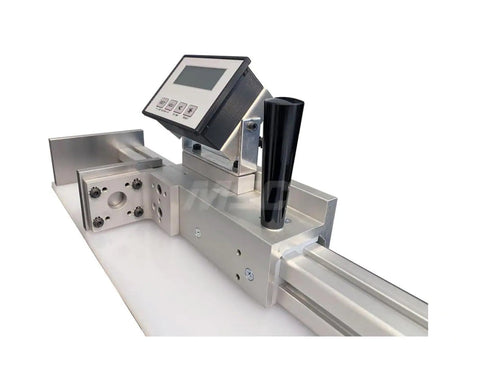

MMP Encoder

Non-Contact, Wear-Free Linear Encoder

The MMP encoders use magnetic sending technology, so they work without contact and ensure a virtually wear-free and maintenance-free operation. This ensures high-accuracy measurements for a lifetime.

Unlike rotary encoders, there are no moving parts. All the mechanical components found in rotary encoders (flange, shaft, bearings, etc.) are not needed, which eliminates mechanical failures and deficiencies.

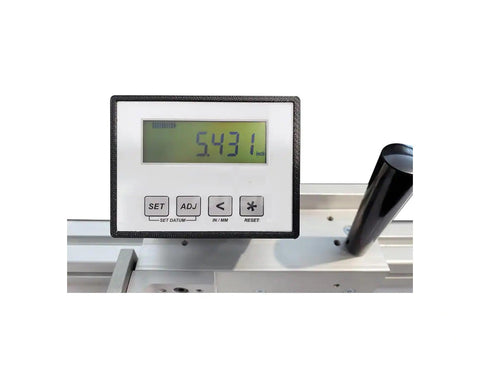

MMP Battery Powered Display

Battery Powered LCD Digital Display

The MMP Digital Displays are powered by the standardized and readily available "C" battery with a battery life up to 12 months*.

Features include:

  • Inch, mm, or fractional display with direct button conversion between inch and mm.
  • Can be zeroed or referenced anywhere along the guide rail
  • Battery life indicator

*Dependent on battery type and usage

MMP Mar-Free Base

Includes a Mar-Free Base

One of the biggest problems with digital calipers is the measurements are subject to variation between operators due to misaligning the jaws with the parts being measured. With the MMP, simply place the part on the base and close the jaws. No more worrying about ensuring the part is square within the measuring jaws.

MMP Bearings

Maintenance-Free Bearings

The MMP utilizes a self-lubricating UHMW bearing pad. This material has a low coefficient of friction, which ensures a smooth carriage travel.

Unlike roller bearings, there is no required lubrication or concerns about breakdown. Thus, maintenance costs and downtime are virtually eliminated.
