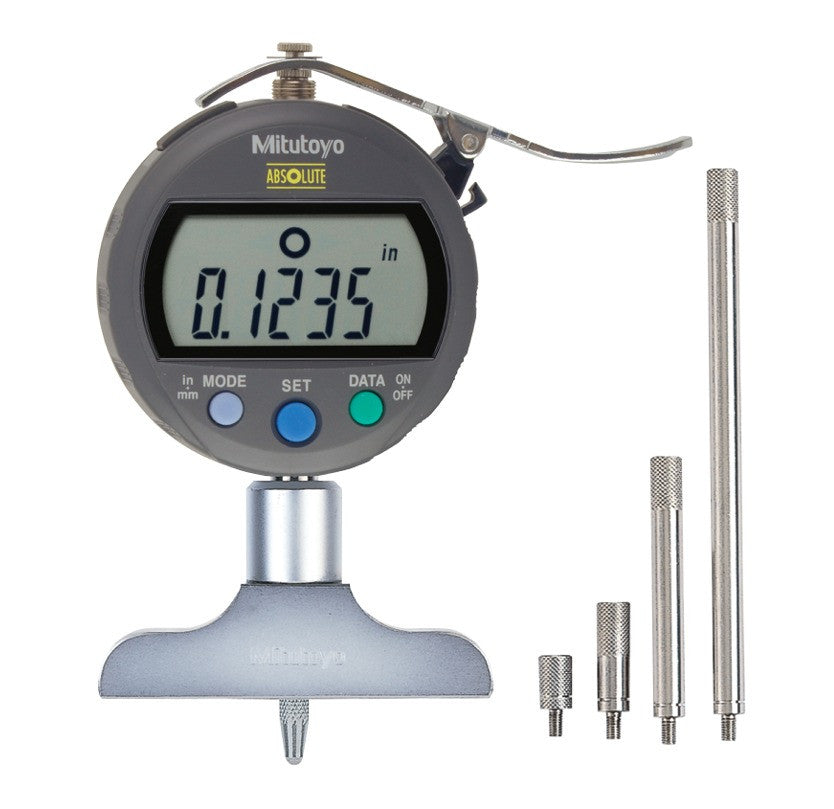

Mitutoyo's ABSOLUTE Digimatic Depth Gage This Depth Gage can keep track of the origin point once set for the entire life of the battery. Wide probing range is available with the supplied extension rod. The bottom surface of the base is hardened, ground and lapped for highest degree of flatness. With SPC data output. Specifications... 0-8" / 200mm Measuring Range 0.0005" / 0.01mm Resolution 0.001" Accuracy 2.5" x 0.63" Base Extension Rods included: .5", 1", 2", 4" Functions... Origin-set, Zero-setting, Data output, inch/mm conversion (inch/mm models), Alarm: Low voltage, Counting value composition error PLEASE SELECT CALIBRATION OPTION FROM PULL DOWN MENU. Standard Calibration Usually takes about 3-4 Weeks to ship from Mitutoyo. 5-Day Calibration Ships out within 1 Week after receipt of order. 1-Day Calibration Ships out in 1 Day after receipt of order. INCLUDES CERTIFICATE OF CALIBRATION TRACEABLE TO NIST. Mitutoyo now is offering their most popular gages with an ISO/IEC 17025 Accredited Certificate of Calibration that is traceable to NIST. These calibrations are performed at Mitutoyo America's A2LA Accredited Calibration Laboratory in Aurora, Illinois after receipt of order. The Open Date Put Into Service is to be filled out by the end user when the gage is first used.
