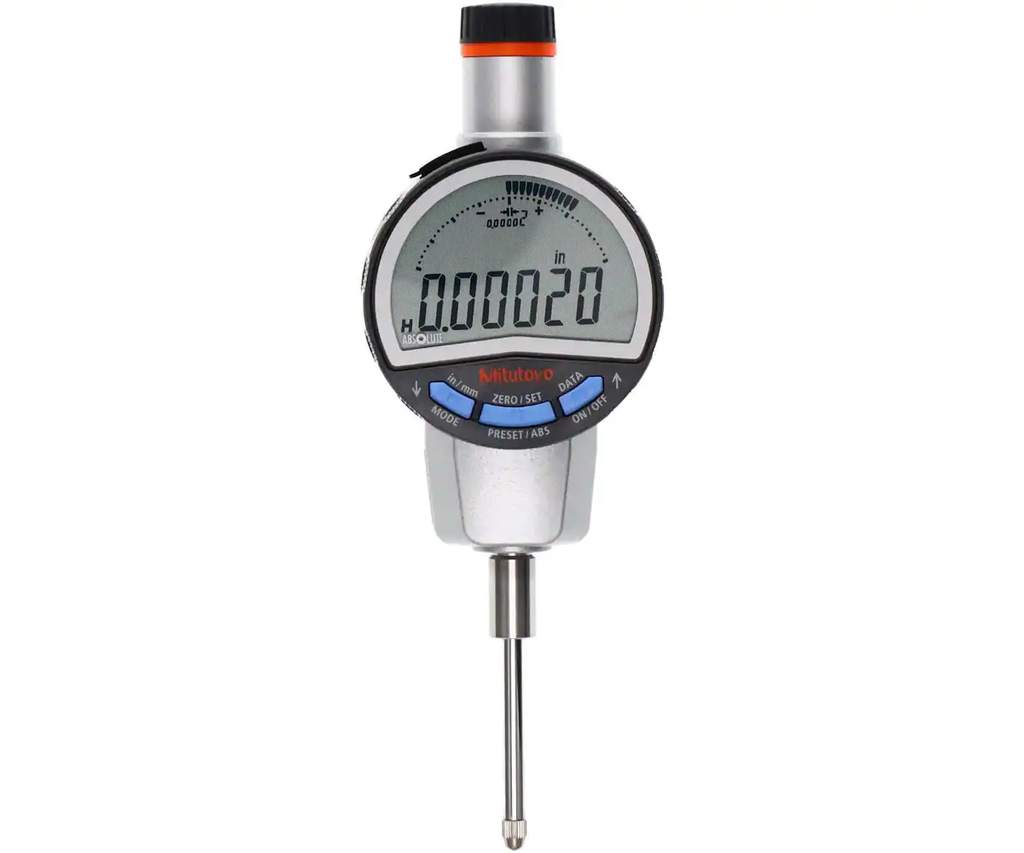

Mitutoyo's NEW ID-C Series is their standard digital indicator line. A large LCD display is incorporated into the gage making for improved visibility, and rotates 330°, allowing for use at a position where the measurement value can always be easily read. Included are three large, easy to press buttons that you can freely set to ANY frequently used functions. Also included in this new model is an analog bar that makes it convenient for observing subtle movements such as the approach to tolerance. Specifications... 0-1" / 25.4mm Measuring Range Selectable Resolutions... 0.00002"/0.00005"/0.0001"/0.0005" 0.0005mm/0.001mm/0.01mm + 0.00012" / 0.003mm Accuracy 1.8N or less Measuring Force Flat Back Face Rotates 330° Stem Diameter: .375" SPC Output Battery Operated Functions include... MIN, MAX, TIR Preset / Zero-Set Direction Switching PLEASE SELECT CALIBRATION OPTION FROM PULL DOWN MENU. Standard Calibration Usually takes about 3-4 Weeks to ship from Mitutoyo. 5-Day Calibration Ships out within 1 Week after receipt of order. 1-Day Calibration Ships out in 1 Day after receipt of order. INCLUDES CERTIFICATE OF CALIBRATION TRACEABLE TO NIST. Mitutoyo now is offering their most popular gages with an ISO/IEC 17025 Accredited Certificate of Calibration that is traceable to NIST. These calibrations are performed at Mitutoyo America's A2LA Accredited Calibration Laboratory in Aurora, Illinois after receipt of order. The Open Date Put Into Service is to be filled out by the end user when the gage is first used.
