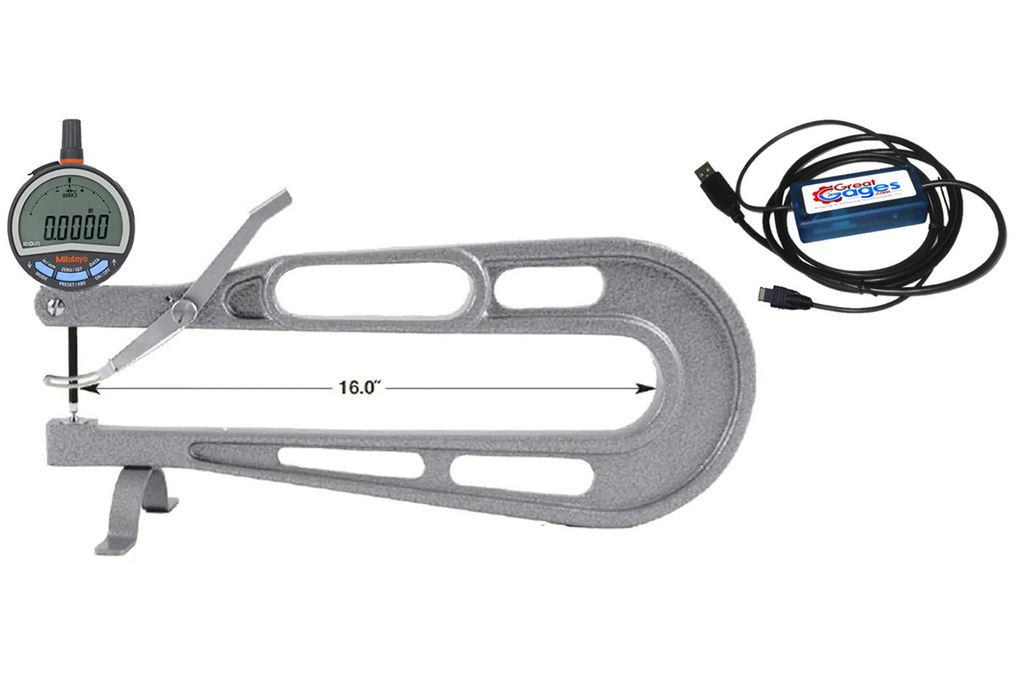

Deep Throat Electronic Thickness Gage with Mitutoyo Indicator Deep Throat Thickness Gages are precision measuring tools used to measure the thickness of materials in hard-to-reach or confined areas. They are designed with an extended reach or "throat" that allows them to measure the thickness of materials in areas where traditional thickness gages cannot reach. This gage includes a 0-.5" measuring range with a 0-16" deep reach, allowing you to measure thickness in hard to reach places. The attached lifting lever makes for one-handed operation, and the included Mitutoyo Digital Indicator includes the following specifications... 0-.5" / 12.7mm Measuring Range .0005"/0.01mm Resolution + 0.0010" / 0.02mm Accuracy 1.8N or less Measuring Force Flat Back Face Rotates 330° Stem Diameter: 8mm M2.5 Contact Point Threads SPC Output Battery Operated Functions include... MIN, MAX, TIR Preset / Zero-Set Direction Switching This gage takes approximately 1 week for production before shipping. Includes USB Direct Gage Interface Cable. USB Direct Cable is recognized by Windows as a keyboard (HID) Incoming data is treated like a keyboard entry. Data will be placed wherever you would be typing in data. Works great with SPC software or MS Excel spreadsheets. Please indicate Tip Style when adding to cart.
