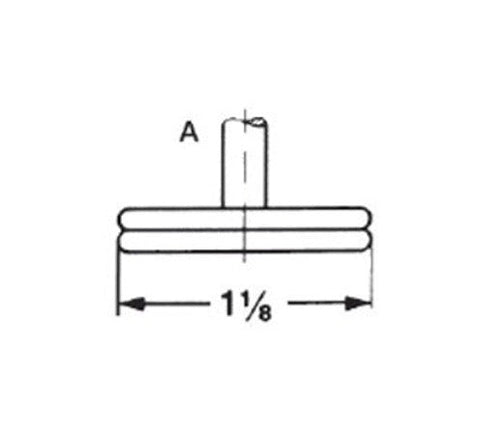

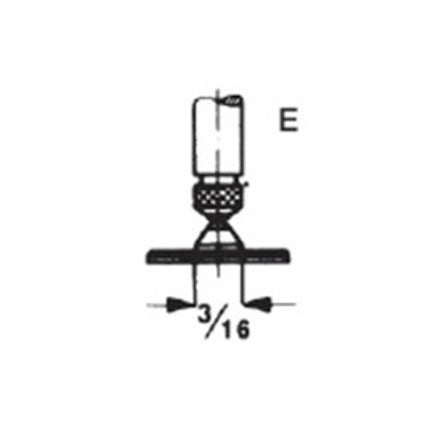

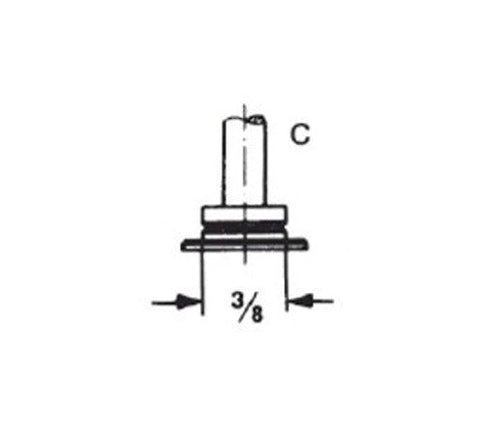

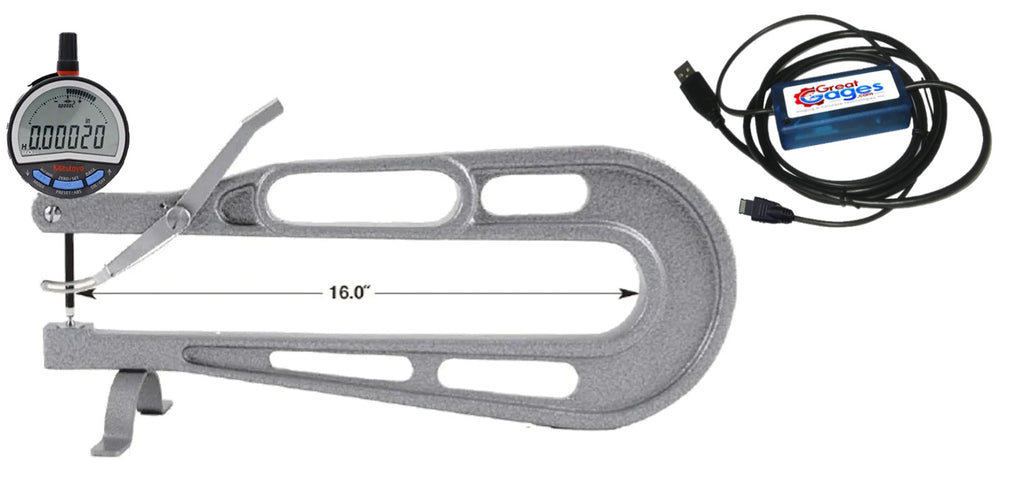

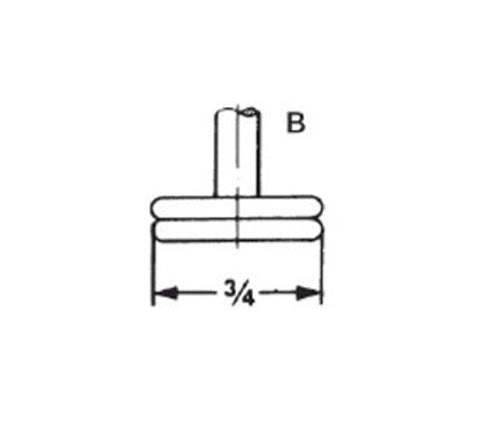

Deep Throat Electronic Thickness Gage with Mitutoyo Indicator This gage includes a 0-.5" measuring range with a 0-16" deep reach, allowing you to measure thickness in hard to reach places. The attached lifting lever makes for one-handed operation, and the included Mitutoyo High Resolution Digital Indicator includes the following specifications... 0-.5" / 12.7mm Measuring Range Selectable Resolutions... 0.00005" / 0.0001" / 0.0005" 0.001mm / 0.01mm + 0.0010" / 0.02mm Accuracy 1.8N or less Measuring Force Flat Back Face Rotates 330° Stem Diameter: 8mm M2.5 Contact Point Threads SPC Output Battery Operated Functions include... MIN, MAX, TIR Preset / Zero-Set Direction Switching This gage takes approximately 1 week for production before shipping. Includes USB Direct Gage Interface Cable. USB Direct Cable is recognized by Windows as a keyboard (HID) Incoming data is treated like a keyboard entry. Data will be placed wherever you would be typing in data. Works great with SPC software or MS Excel spreadsheets. Please indicate Tip Style when adding to cart.
