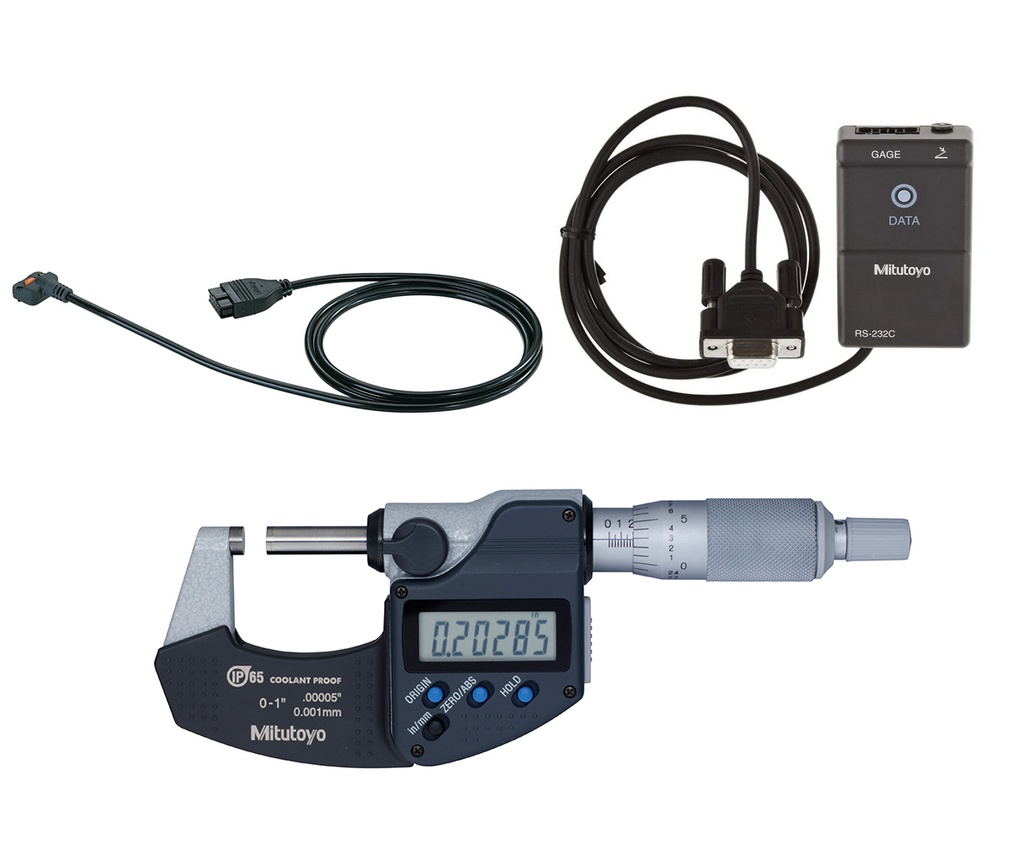

Mitutoyo Micrometer to PC Serial Interface Package This complete package provides all of the items required to be able to measure your products with a Mitutoyo 0-1" Digital Micrometer, and then send the measured data to a PC through a Serial port. The incoming data will need to be "handled" by a software utility, custom program, or software looking for data from the serial port. Complete package includes the following... Mitutoyo's most popular Coolant Proof Micrometer w/SPC Output! The Mitutoyo 293 Series is a line of advanced digital micrometers offering high accuracy and resolution for precision measurement. Available in a range of sizes, this series features an ABSOLUTE linear encoder that eliminates reliance on origin point setting. The ratchet thimble and friction thimble options allow both coarse and fine adjustment. With an IP65-rated dust/water proof body, the 293 Series is ideal for shop floor use. It has a convenient flip-open lever to speed measurements as well as Mitutoyo's DIGIMATIC output for data transfer. Specifications Include... 0-1" / 0-25.4mm Measuring Range 0.00005" / 0.001mm Resolution Accuracy +/- .00005" Features Include... IP65 Level of Protection, enabling use in environments exposed to cutting oil, etc Measurement data output function is available with a water-resistant connection cable Auto power ON/OFF function With a standard bar Supplied in fitted case Carbide Tipped Faces Ratchet Stop Functions Include... Origin Set Zero Set Auto Off Data Hold in/mm conversion Mitutoyo Serial Data Input Tool The Mitutoyo Data Input Tool RS-232 allows you to easily input measurement data from a Mitutoyo gage with digimatic output to your PC thru the PC's 9-pin serial connector. The incoming data will be transmitted thru RS-232 communications. Cable is 0.9m in length 2m SPC Interface Cable This 2 meter data cable from Mitutoyo is designed for transferring measurements from compatible Mitutoyo digital micrometers to a computer or data collection device. It features a 10-pin Mitutoyo Digimatic connector on one end to interface with the micrometer. The other end has a waterproof B-type connector with an output button to connect to the data collection device. With this cable, users can transmit micrometer measurements directly to software, eliminating the need for manual data entry. Footswitch. (Optional) Used on floor as footswitch or on the tabletop as a palmswitch. With a cable about 4.5ft long. Package can be purchased with or without a Footswitch.
